 Overall Impedance Measurement Theory

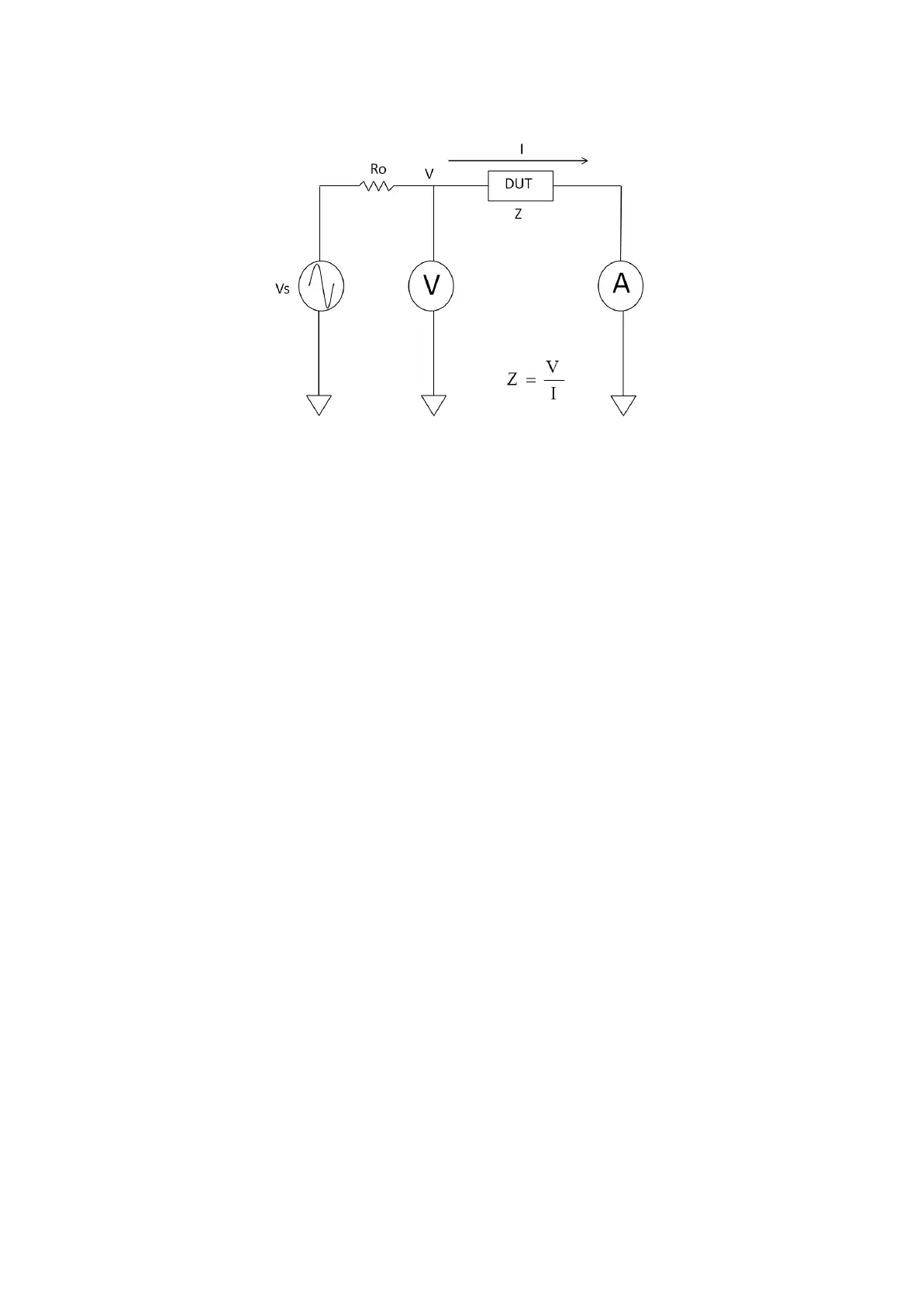

The simplified model of the 6632 impedance measurement, Vs is the test signal

voltage and RO is source resistance. If the current across the DUT is I when a

test signal voltage V is applied, the DUT's impedance, Z, is expressed by Z = .

Impedance, Z, contains real and imaginary parts. The figure shows vector

representation of impedance as follow.

R: Resistance

X: Reactance

|Z|: Impedance

θ: Phase Angle
