3.3 Description of function keys on back panel

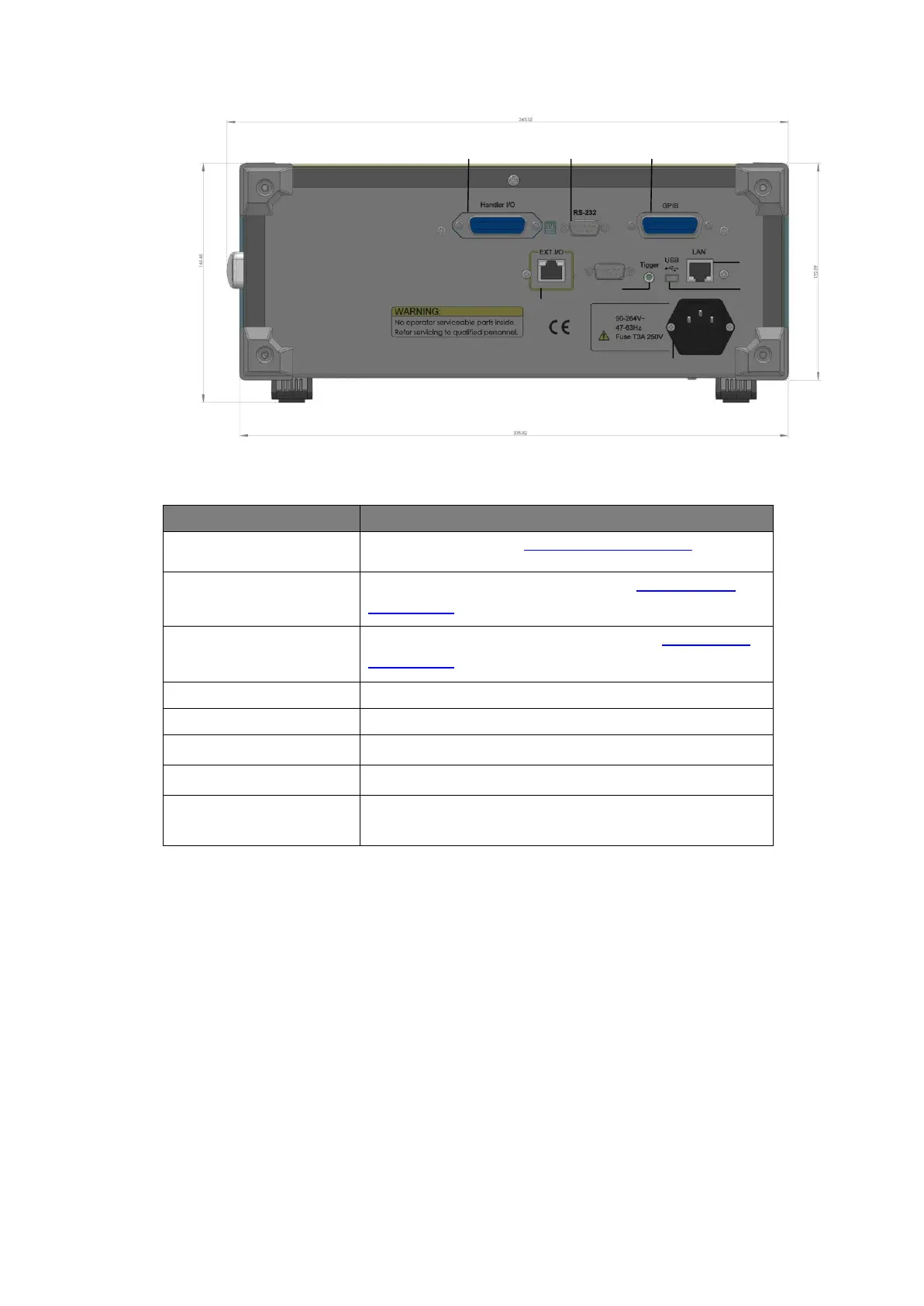

*Rear view (millimeters)

PORT

FUNCTION

1. Handler

Pass/Fail signal (see3.4.3 Hander Interface)

2. RS232

For connecting to software port(see3.4.2 RS232

Connecting)

3. GPIB

Remote control port: 24-pin block (see3.4.1 GPIB

Connecting)

4. EXT. I/O

For expanding Bias Input/Output port

5. Trigger

Pedal Switch port

6. USB

For software copying and upgrading

7. LAN

Network port

8. Power jack

Fuseblock

AC power for 90~264V / 47~63Hz

The fuse block contains input power fuse T3A/250V
