 Characteristics Example

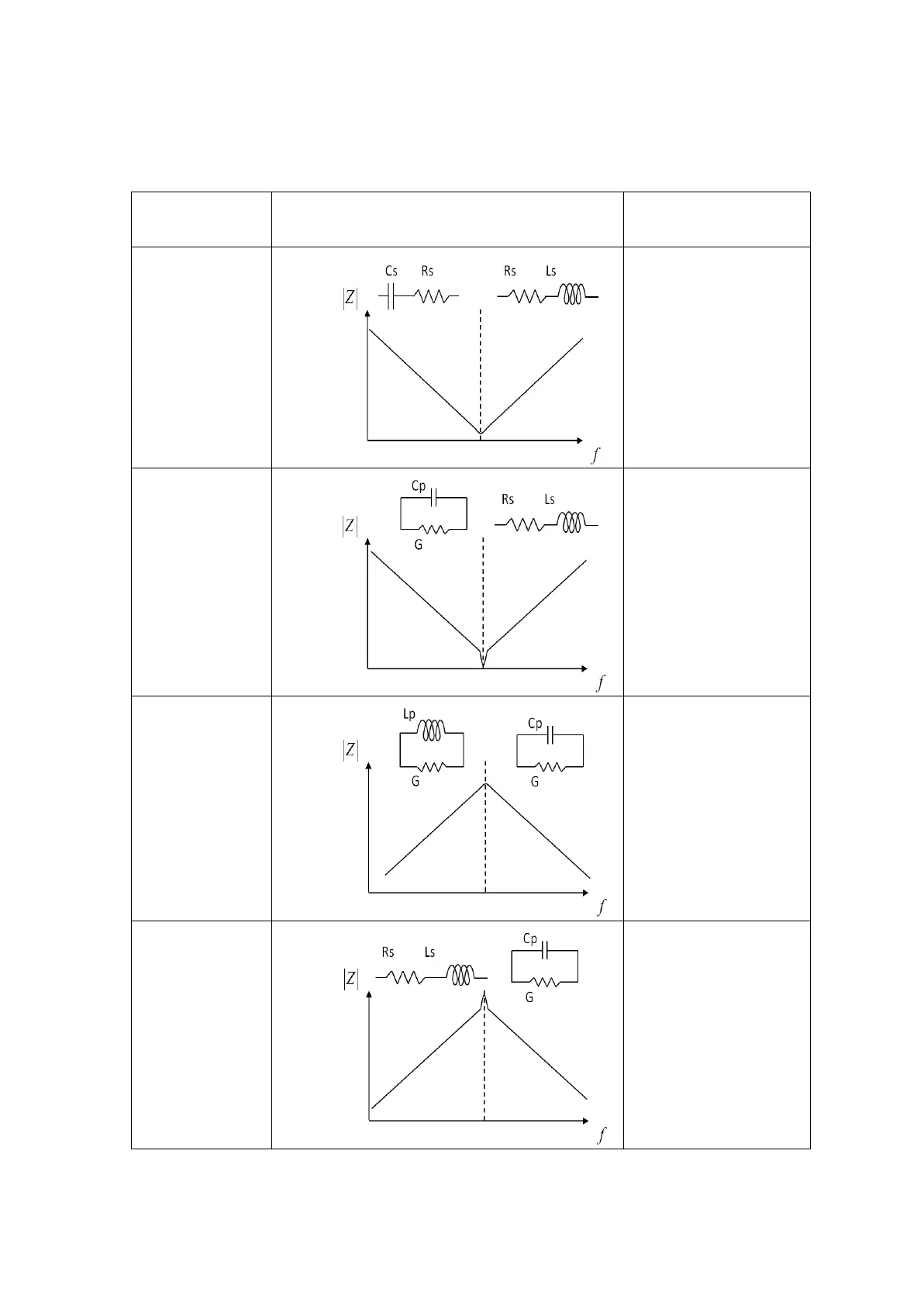

As can be seen in the following figure, a component can have different effective
parameter values dependent upon its operating condition. The measured values
most useful in actual applications are obtained from precise measurement under the
actual operating conditions.
Dut
Characteristics Example
Measurement
Functions
Large C
Cs-Rs
Cs-D
Cs-Q
R-X
|Z|-∠θ
Small C
Cp-G
Cp-D
Cp-Q
G-B
Y-∠θ
Large L
Lp-G
Lp-D
Lp-Q
G-B
Y-∠θ
Small L
Ls-Rs
Ls-D
Ls-Q
R-X
|Z|-∠θ
