99

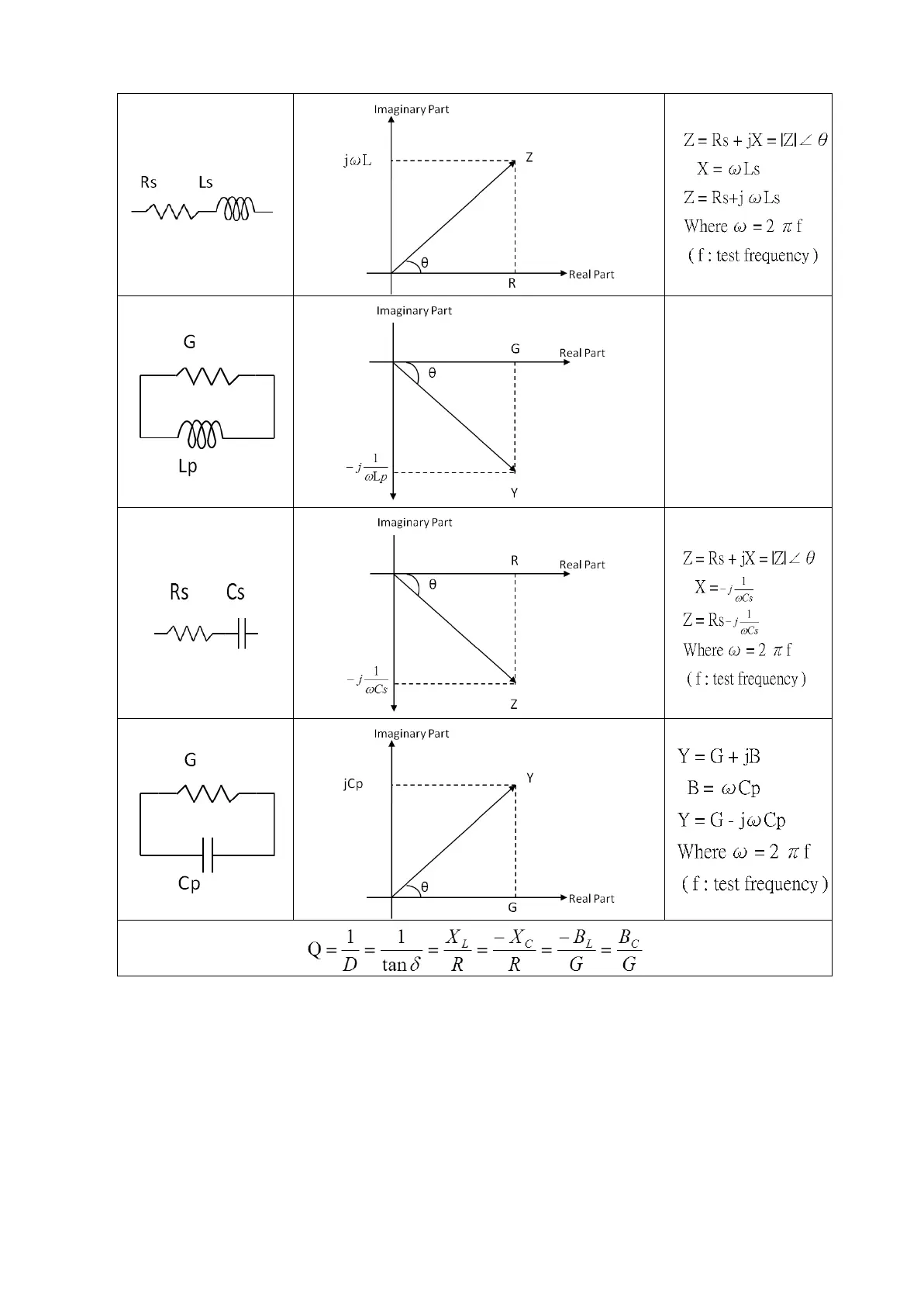

The 6632 measures a DUT's impedance, Z, which is a vector value, and gives
the result using the following equivalent circuits.
Lp : Parallel Inductance
Ls : Series Inductance
Q : Quality factor
Cp : Parallel Capacitance
Cs : Series Capacitance
D : Dissipation factor
