Microtest 6632 Series User Manual

45

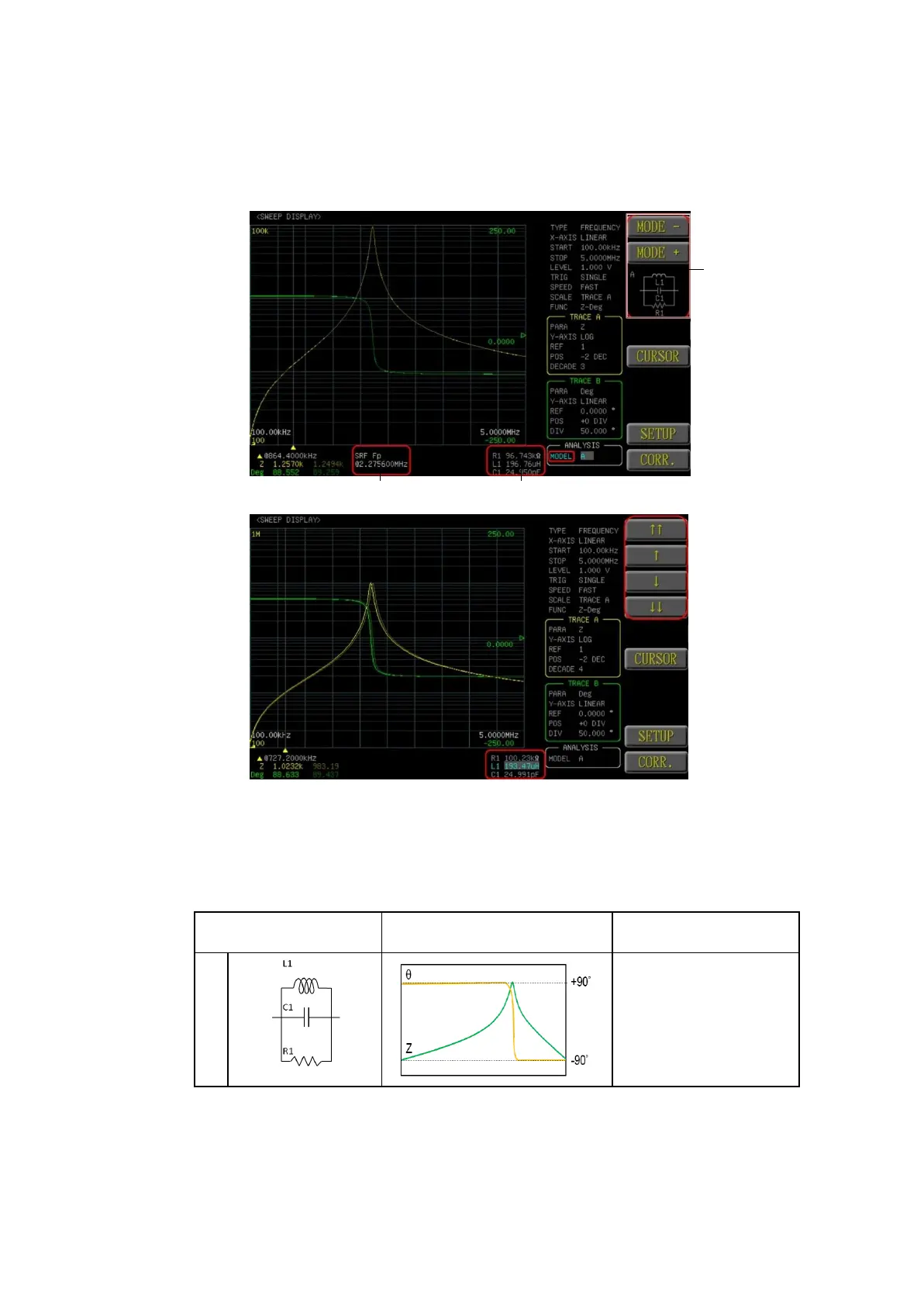

6.2 Equivalent Circuit Analysis (option)
The equivalent circuit analysis function estimates equivalent circuit
constantsbased on measurement results. The 6632 can estimate 3-element
model and 4-element model. By using the simulation function, you can display
frequency characteristic ideal values using estimation results or user-configured
constants.
Use <mode-> and <mode+> function key to set the equivalent circuit type. Move
the cursor to the equivalent circuit values; you can enter the desired value with
numeric keypad or use <↑↑>, <↑>, <↓> and <↓↓> to do the fine adjustment, then
you can simulate the equivalent circuit.
Equivalent Circuit
Model
Typical Frequency
Characteristics
Dut Example
A
Inductor: Inductor with
high core loss and low
ESR
C
i
r
c
u
i
t
M
o
d
e
self-resonant
frequency
equivalent circuit values
