7.2 Short Circuit Correction
In CORRECTION page, <OFF><ON> function key to open the short circuit
correction, and use <Short> function key to do the short circuit correction.
Before starting the short circuit correction, please insert the shorting plate into
the fixture for executing the short circuit correction. If the correction fails or the
figure is incorrect, the page will display the calibration failure message; if
successful, it will return to the CORRECTION page automatically.

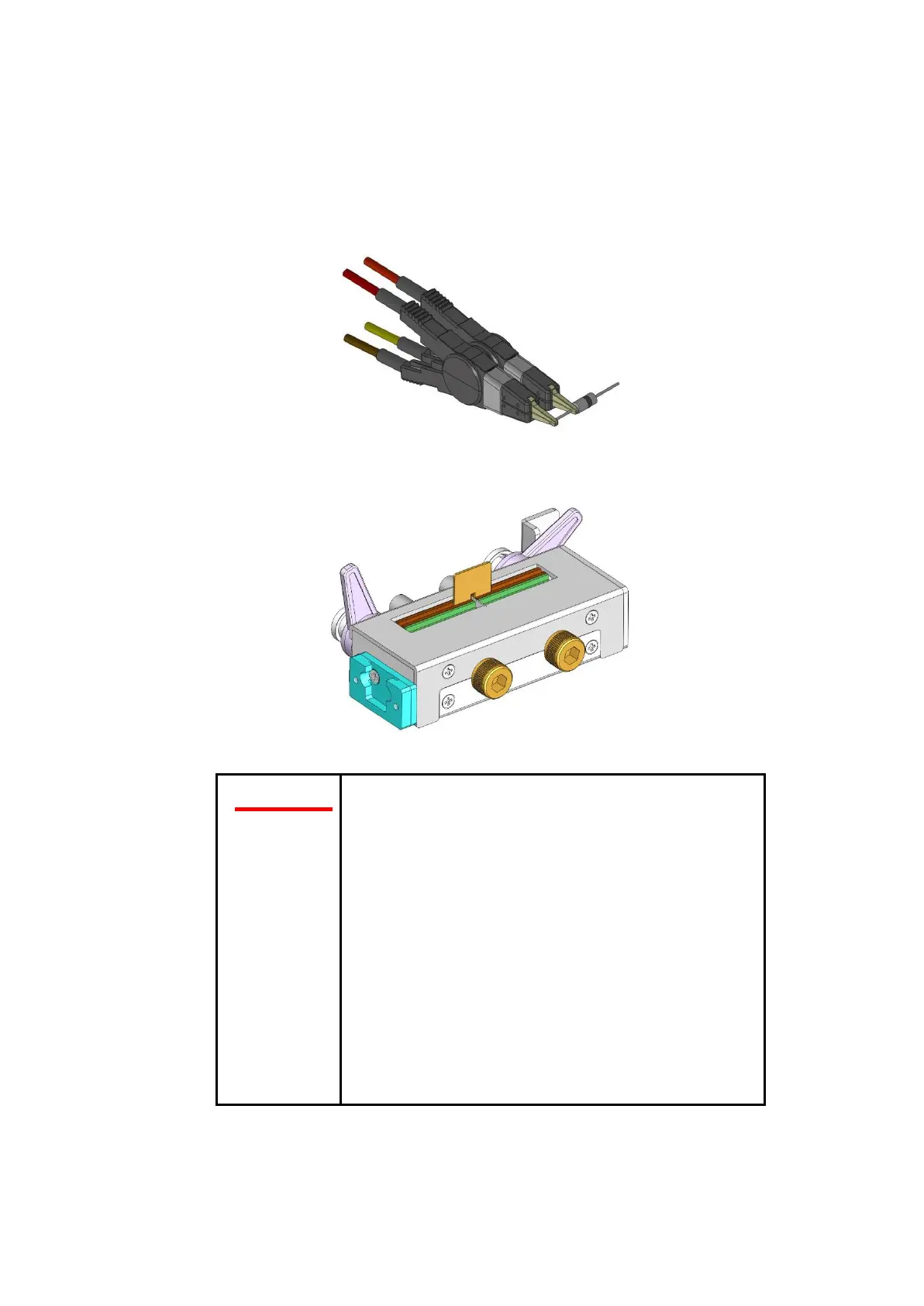

Test Cable Short Circuit Method
Fixture Short Circuit Method (lock the reed tightly after inserting the shorting bar)
NOTE:
If short circuit correction fails, you should check the
following points before starting the correction process
again:
 Check that the test fixture or the test cables are
properly connected.
 Check that the test fixture or the test cables are
properly shorted together with the shorting bar. (Short
circuit correction cannot be performed while any test
piece is connected to the test fixture or the test
cables.)
 Check the test leads are arranged as closely as
possible to their configuration in which measurement
will be performed.
 During the correction process, be sure not to disturb
the fixture and the test cables or to move your hand
near them.
