26

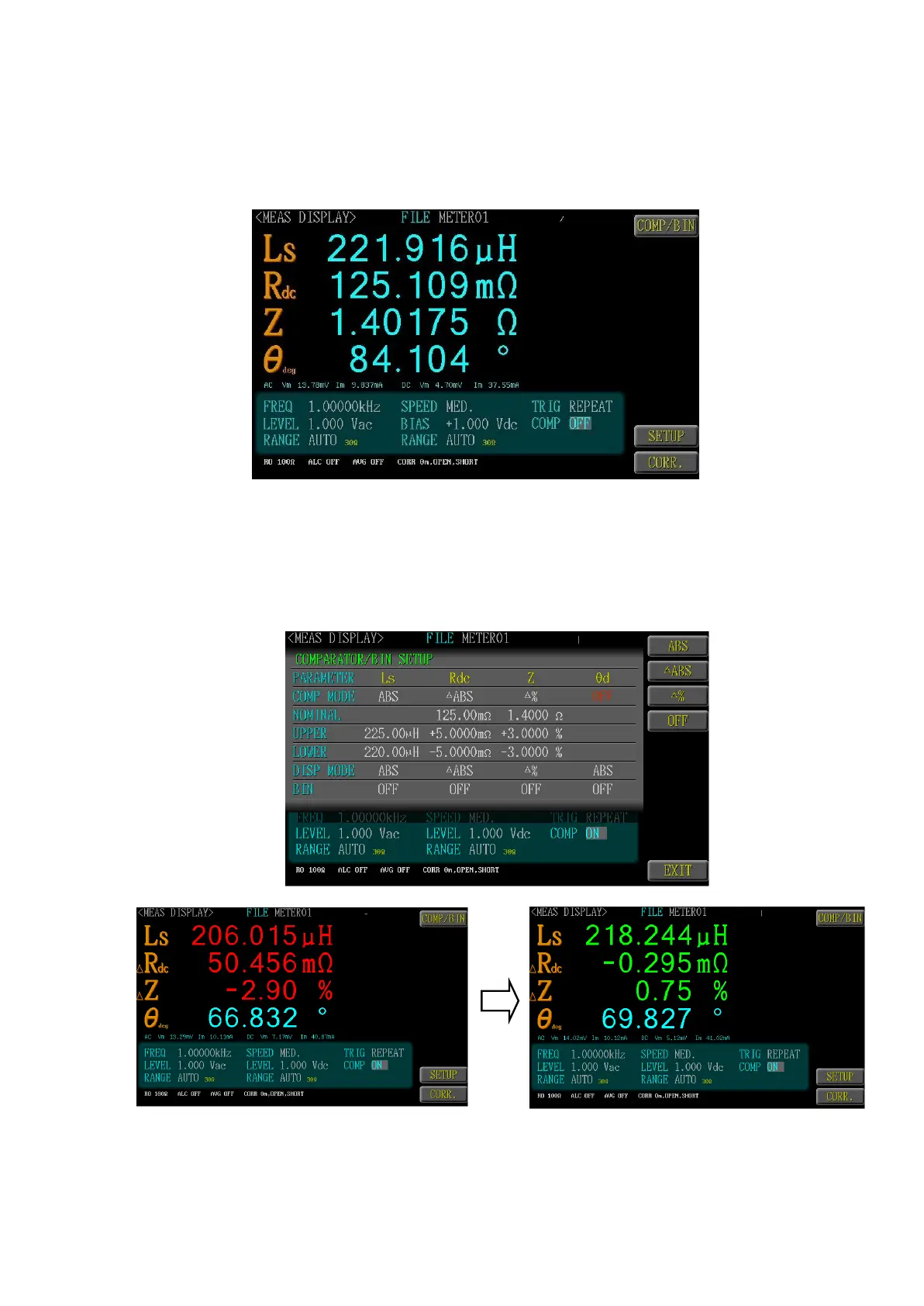

4.18 COMP (Comparison)
Under the Meter Mode page, select <COMP> with <Direction> key to access the
comparison setup page. It is preset as “No”. When selecting “Yes”, the high/low
limit range must be set for using as the measuring setup of the production line or
the automated process.
4.18.1 COMPARATOR SETUP
Preset a reference value and upper and lower limit values as the
comparative reference, and displaya comparative result as green
font(measured value is between UPPER and LOWER), red
font(measured value exceed UPPER and LOWER).
