22

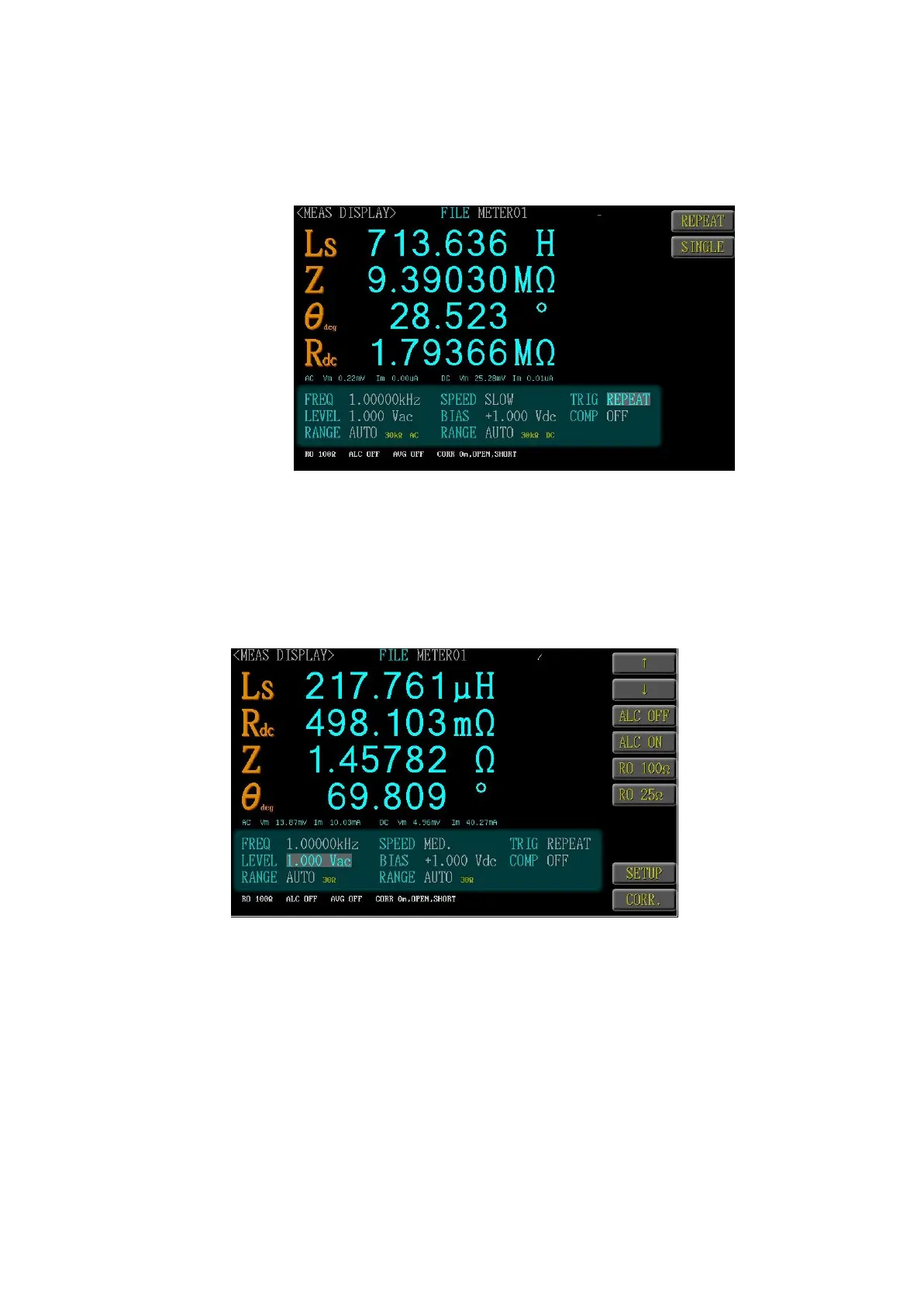

4.12 TRIGGER MODE
Under the Meter Mode page, select <TRIG> with<Direction>key.It is preset as
<REPEAT>, and the instrument will execute the measuring continuously. If
selecting <SINGLE> option, then it must be activated by pressing <Trigger>
key. The measuring will be repeated with each pressing of <Trigger> key.
4.13 LEVEL/RO/ALC
Under the Meter Mode page, select <LEVEL> with <Direction> key. Press Input
Digit key and then <Enter> to confirm the value or use the function key↑,↓ to
adjust the Level value.The AC voltage range is 10mV~2Vrms, and the current
range is 200µA~20mArms. The ADC voltage range is 10mV~1Vrms, and the
current range is 200µA~40mArms
4.13.1 RO (Output Impedance)
The<100Ω>or<25Ω> can be selected according to the user’s demand.
The varied signal source output impedance will lead to the varied current
or the difference of measuring value. If selecting <25Ω>, then the AC
voltage range change to 10mV~1Vrms, and the current range is
200µA~40mArms.
