6.1.6 CURSOR

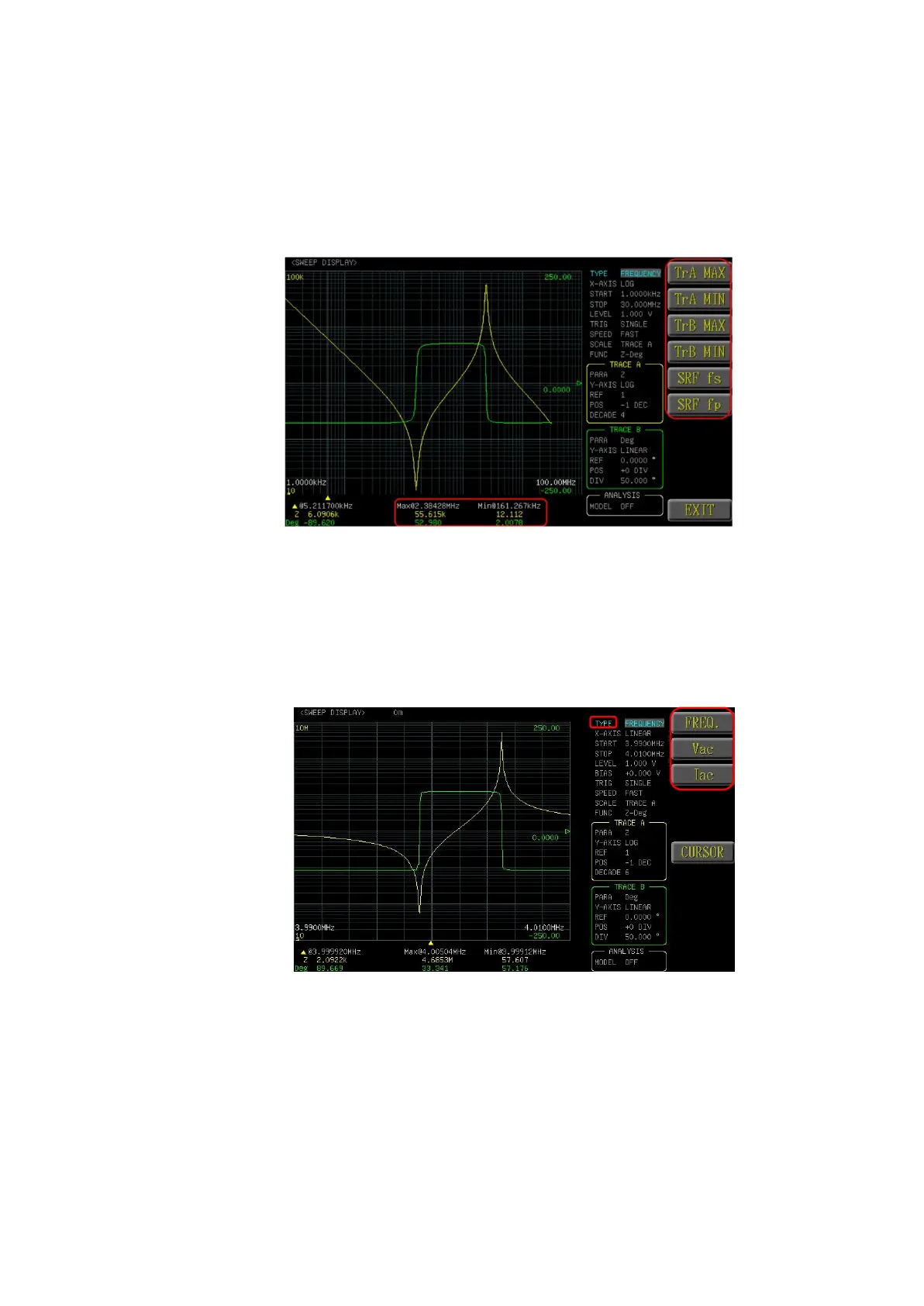

The <CURSOR> function can easily find the maximum value, minimum
value, and self-resonant frequency parallel/serial, then the searching
result will be displayed at the lower-middle of LCD panel.
<TrA MAX: traceA's maximum value>, <TrA MIN: traceA's minimum
value>, <TrB MAX: traceB's maximum value>, <TrB MIN: traceB's
minimum value>, <SRF fs: self-resonant frequency serial>, <SRF fp:
self-resonant frequency parallel>
6.1.7 AUTO FIT
If the sweeping result exceeds the vertical range, then press <AUTO
FIT> key to adjust the sweeping graph automatically.
6.1.8 TYPE
It is preset as <FREQUENCY>. Use <Direction> key and the user can
switch to <VAC: Voltage> or <IAC: Current>.
