Air Valve - continued
Replacement / Cleaning

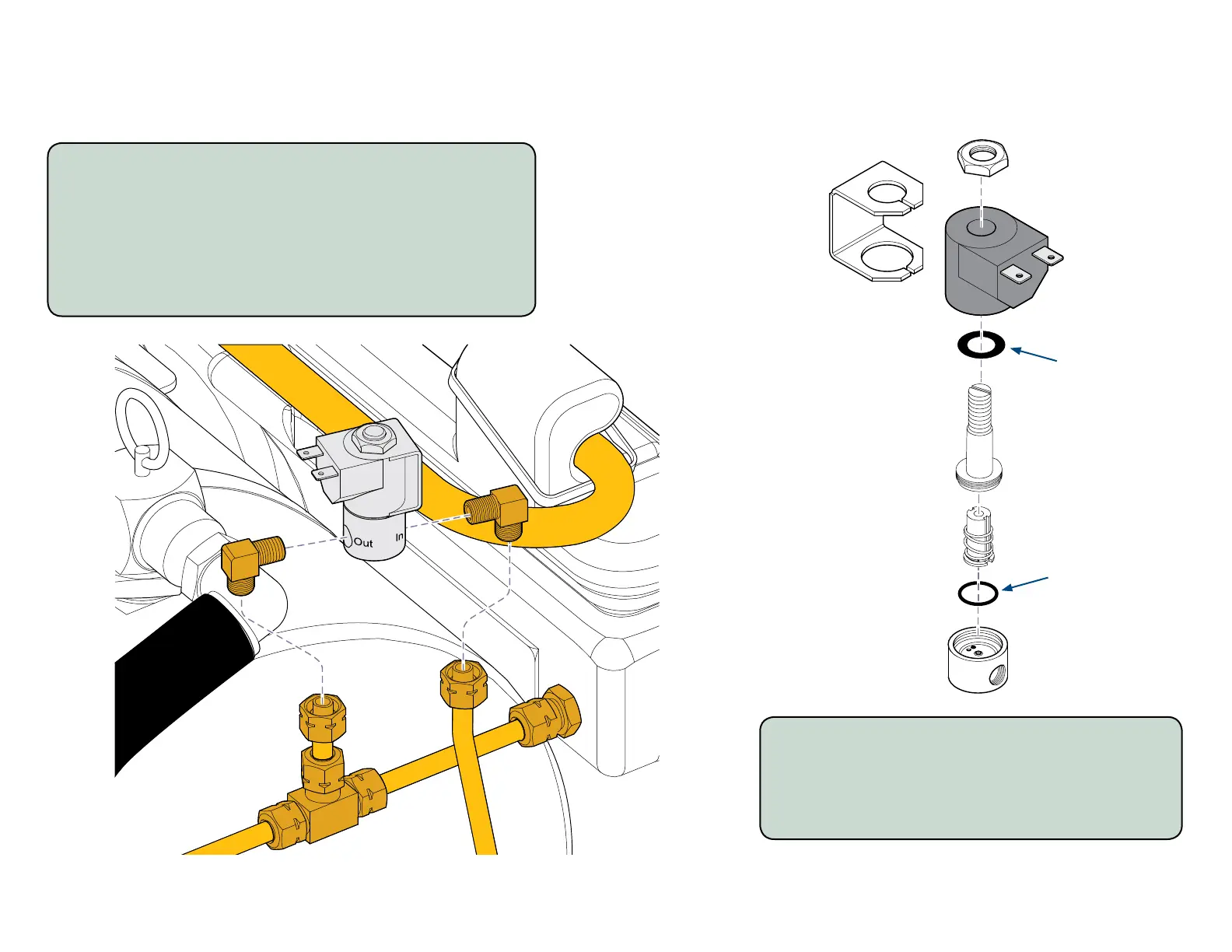

To replace the air valve...
A) Loosen two compression fittings, then remove air valve.
B) Remove two elbow fittings from air valve.
C) Apply hi-temp sealant (Loctite 565) to threads of elbow fittings.
Do not use teflon tape!
D) Install elbow fittings onto air valve.
E) Position air valve, then tighten compression fittings.
F) Run test cycle / check for leaks.
MA676701i
To disassemble / clean the air valve...
A) Remove nut, coil retainer, and coil.
B) Remove valve stem, then clean ports in valve body.
C) Inspect O-ring and flat gasket. Replace if necessary.
D) Reassemble valve components.
Flat Gasket
O-ring
MA663600i
