Mikro DPM680 - Power Factor (PF)

39
Meter Operations 3.5.1 3.5.2
3.5.1
pf & frEquEnCY
The PF & Frequency page shows the summary
of the overall total power factor as well as the
power frequency as shown in Fig 45:

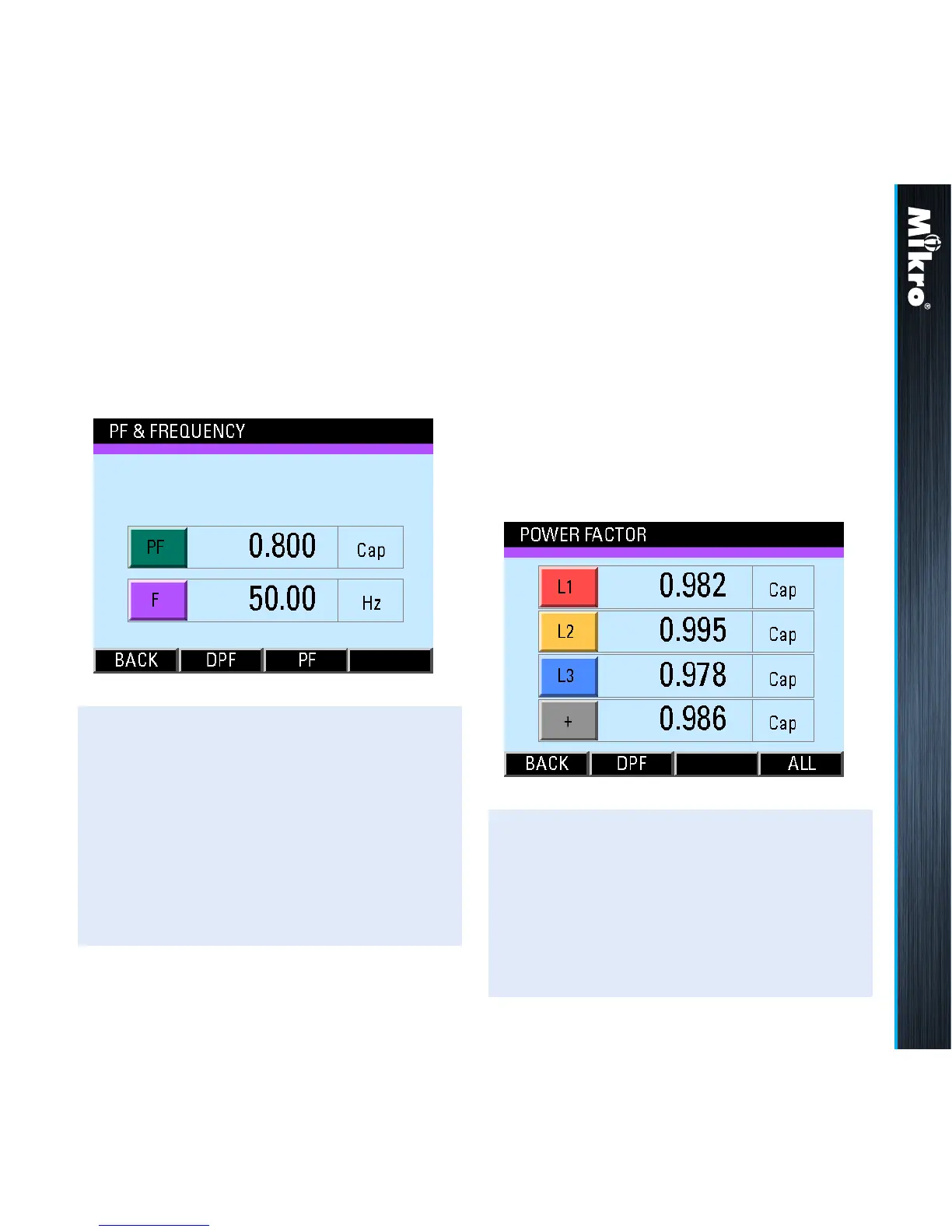

Fig 45 : PF & FREQUENCY page
TouCH BuTTon funCTions:
• to jump to the Displacement PF page, touch
the DPF (F2) button.
• to jump to the Power Factor page, touch the
PF (F3) button.
• otherwise, touch the BACK (F1) button to
return to the PF & FREQUENCY sub-menu.
3.5.2
powEr faCTor (pf)
The Power Factor page shows the total power
factor for each phase as well as the overall total
power factor as shown in Fig 46. The total power
factor is derived from the phase RMS voltage,
RMS current and active power. Please see
section B.4 in Appendix B for more details.
Fig 46 : Power Factor page
TouCH BuTTon funCTions:
• to jump to the Displacement PF page, touch
the DPF (F2) button.
• to jump to the PF & FREQUENCY page,
touch the ALL (F4) button.
