Mikro DPM680 - Modbus

61
Meter Operations 3.8.2.1 3.8.2.2
TouCH BuTTon funCTions:
• to abort saving the settings, touch the NO
(F3) button to return to the Ethernet (TCP/
IP) sub-page.
• otherwise, touch the YES (F2) button to save
the settings and the user will be prompted for
password authentication as in section 3.2.
• to save the settings and/or return to the
Ethernet (TCP/IP) sub-page, touch the
BACK (F1) button.
The user will be prompted to conrm the saving
of settings.
The meter MUST be powered off and on for the
new IP settings to take effect.
TouCH BuTTon funCTions:
• to input new settings, touch the SET (F4)
button.
• otherwise, touch the BACK (F1) button to
return to the Communication Settings page
(only for DPM680) or the SETTING sub-menu.
3.8.2.2
MoDBus
The Modbus sub-page displays and allows the
setting of Modbus communication parameters as
shown in Fig 75.

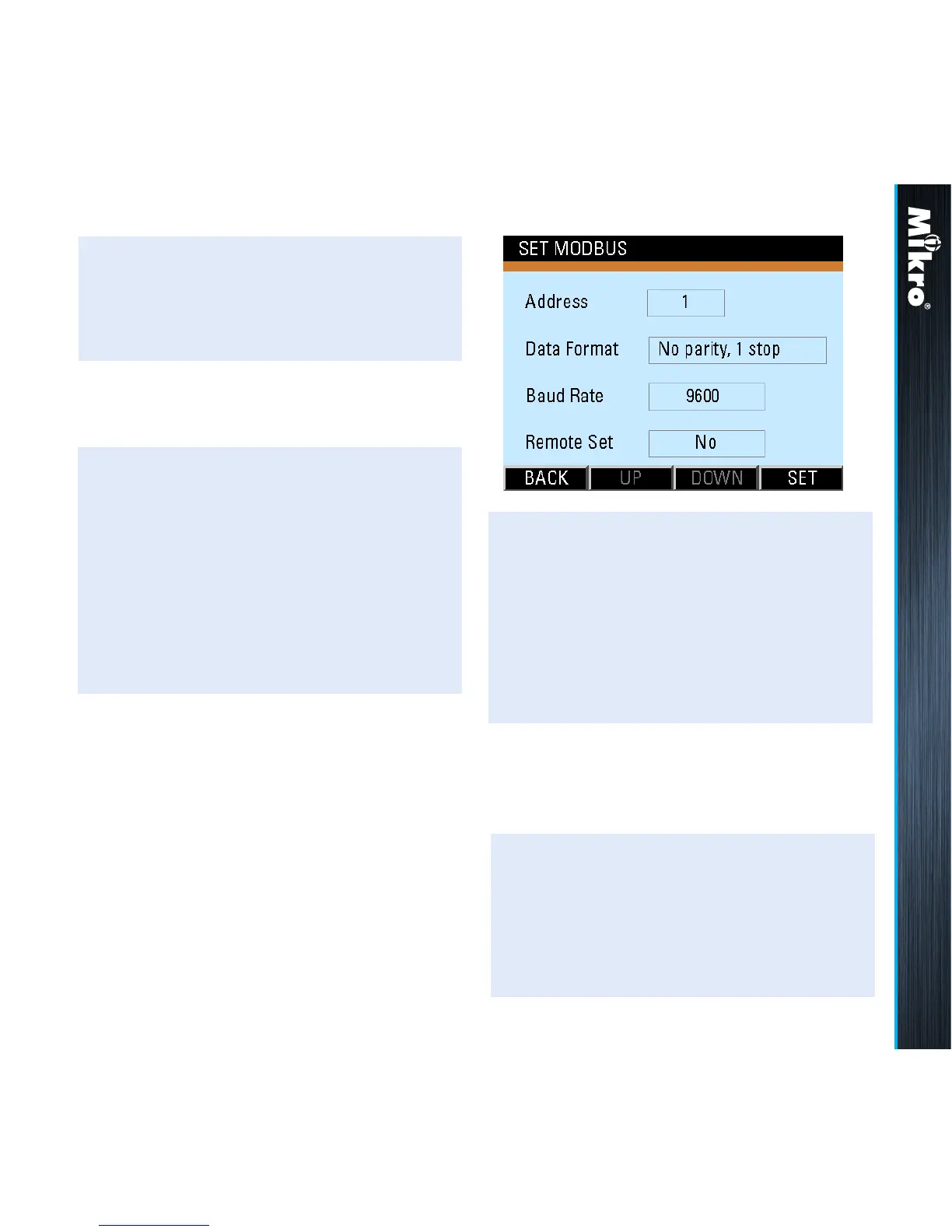

Fig 75 : Modbus sub-page
In the input mode, the UP (F2) and DOWN (F3)
buttons will become active and the background
colour of the active eld will be changed to white.
TouCH BuTTon funCTions:
• to increase the number or select the next
option, touch the UP (F2) button.
• to decrease the number or select the prior
option, touch the DOWN (F3) button.
