rEaCTiVE powEr
The Reactive Power page shows the nett
reactive power for each phase as well as the total
nett reactive power as shown in Fig 54:

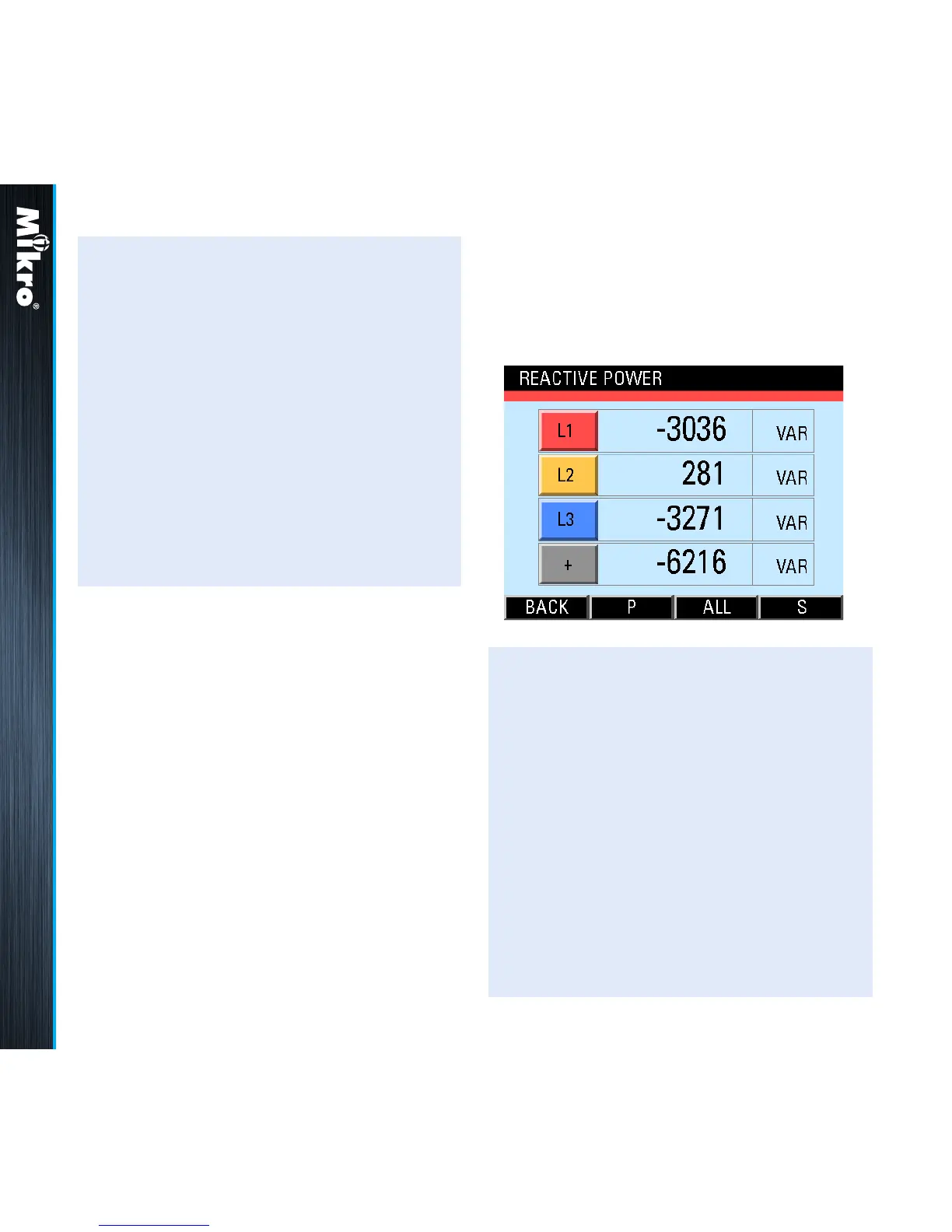

Fig 54 : Reactive Power page
TouCH BuTTon funCTions:
• to jump to the Active Power page, touch the
P (F2) button.
• to jump to the Total Power page, touch the
ALL (F3) button.
• to jump to the Apparent Power page, touch
the S (F4) button.
• otherwise, touch the BACK (F1) button to
return to the POWER sub-menu.
TouCH BuTTon funCTions:
• to jump to the Total Power page, touch the
ALL (F2) button.
• to jump to the Reactive Power page, touch
the Q (F3) button.
• to jump to the Apparent Power page, touch
the S (F4) button.
• otherwise, touch the BACK (F1) button to
return to the POWER sub-menu.
