Mikro DPM680 - Apparent Power; Total Power

45
Meter Operations 3.6.3 3.6.4
TouCH BuTTon funCTions:
• to jump to the Active Power page, touch the
P (F2) button.
• to jump to the Reactive Power page, touch
the Q (F3) button.
• to jump to the Total Power page, touch the
ALL (F4) button.
• otherwise, touch the BACK (F1) button to
return to the POWER sub-menu.
3.6.3
apparEnT powEr
The Apparent Power page shows the nett apparent
power for each phase as well as the total nett
apparent power as shown in Fig 55:

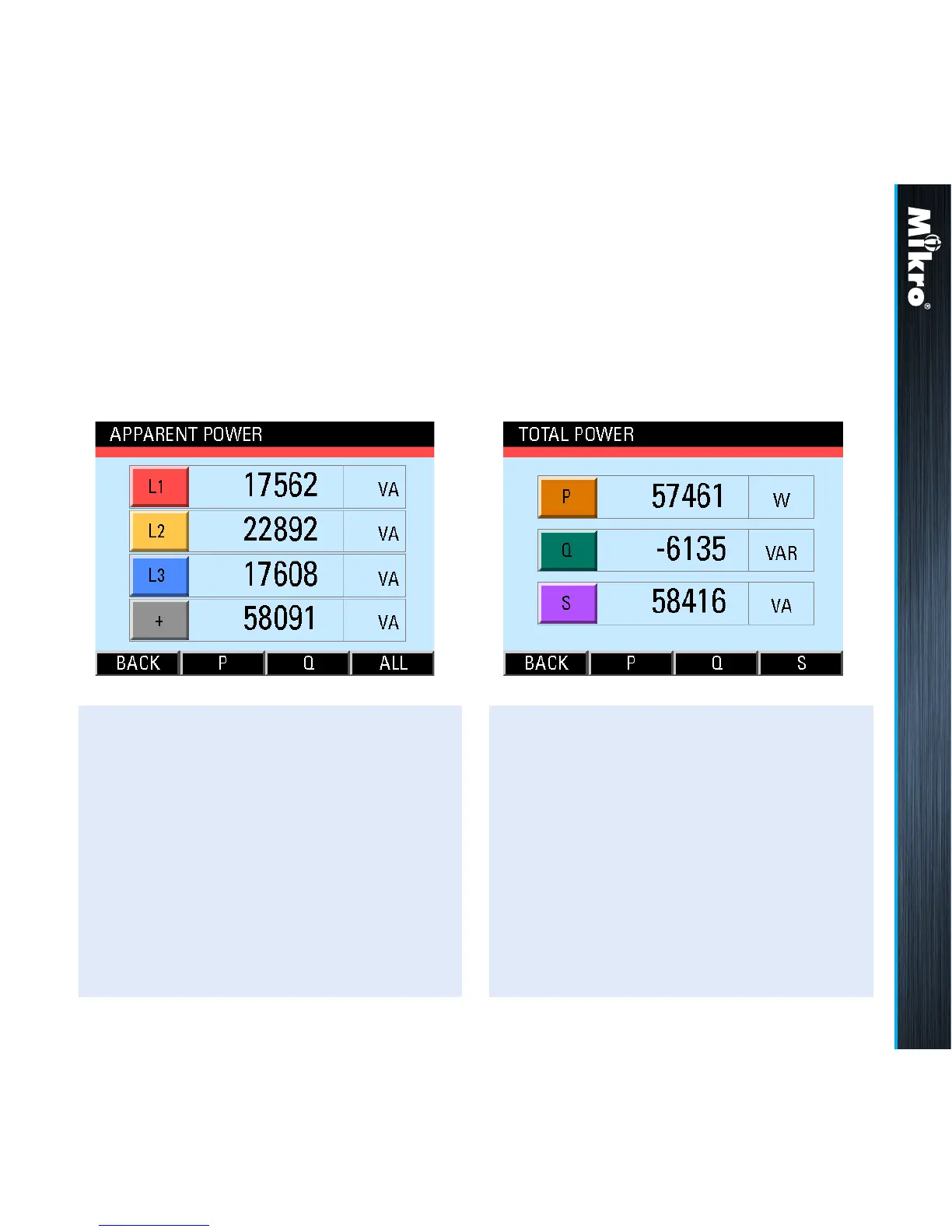

Fig 55 : Apparent Power page
TouCH BuTTon funCTions:
• to jump to the Active Power page, touch the
P (F2) button.
• to jump to the Reactive Power page, touch
the Q (F3) button.
• to jump to the Apparent Power page, touch
the S (F4) button.
• otherwise, touch the BACK (F1) button to
return to the POWER sub-menu.
3.6.4
ToTal powEr
The Total Power page shows the total nett power
ow for active, reactive and apparent power as
shown in Fig 56:
Fig 56 : Total Power page
