40
Meter Operations 3.5.3 3.5.4
TouCH BuTTon funCTions:
• to jump to the Power Factor page, touch the
PF (F3) button.
• to jump to the PF & FREQUENCY page,
touch the ALL (F4) button.
• otherwise, touch the BACK (F1) button to
return to the PF & FREQUENCY sub-menu.
3.5.3
DisplaCEMEnT pf (Dpf)
The Displacement PF page shows the
displacement power factor for each phase as
shown in Fig 47. The displacement power factor
is derived from the fundamental component of
the phase voltage, current and fundamental
active power. Please see section B.4 in Appendix
B for more details.
3.5.4
Max/Min inDuCTiVE pf
The Max/Min Inductive PF page shows the
recorded maximum and minimum inductive power
factor with the corresponding time and date since
the last reset as shown in Fig 48:

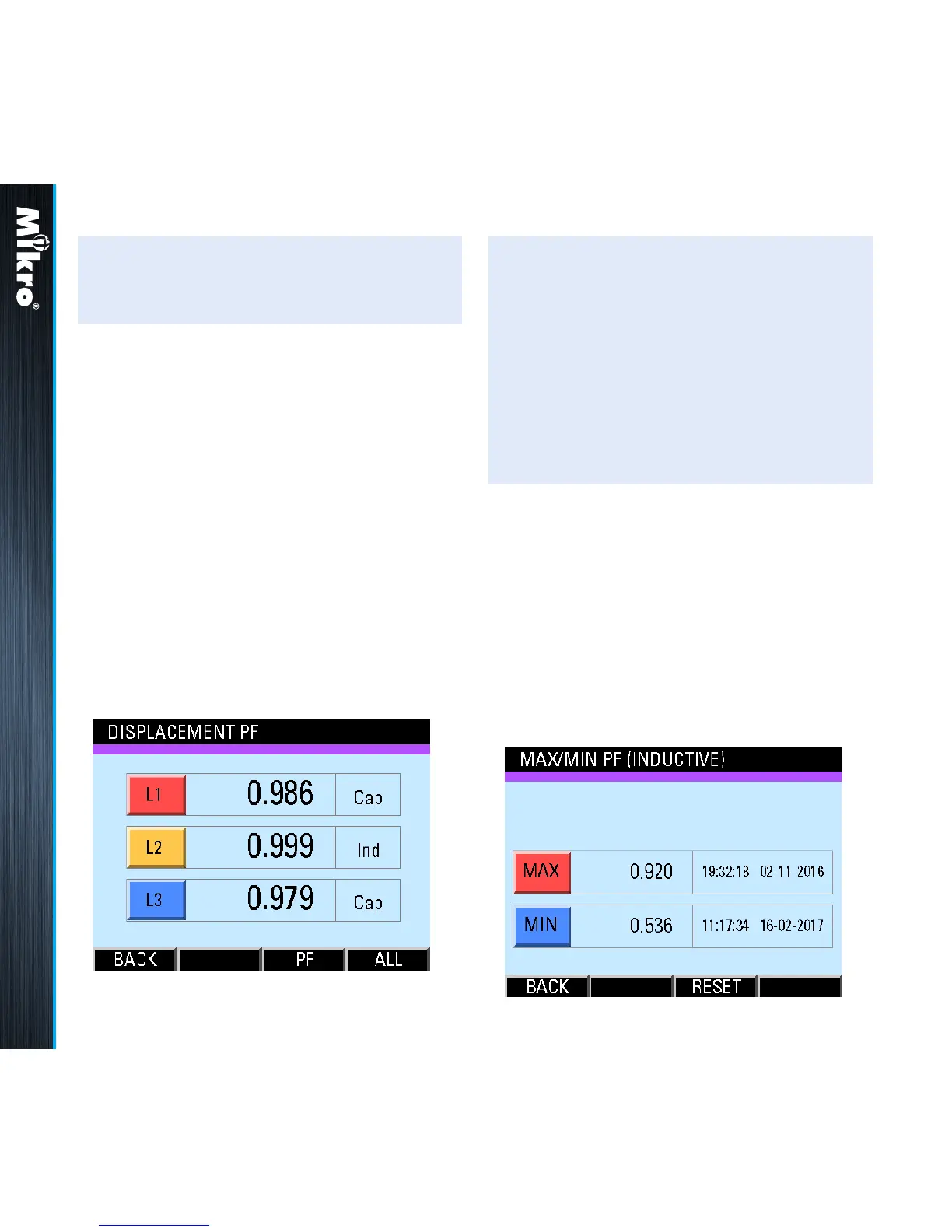

Fig 47 : Displacement PF page
Fig 48 : Max/Min Inductive PF page
• otherwise, touch the BACK (F1) button to
return to the PF & FREQUENCY sub-menu.
