A7™ Service Manual 046-006272-00 1 - 89
Theory of Operation Electrical Flow Control System
Nitrous Oxide Flow Sensor Interface Board Interface, J2
1.8.6 O2 Flow Sensor Interface Board

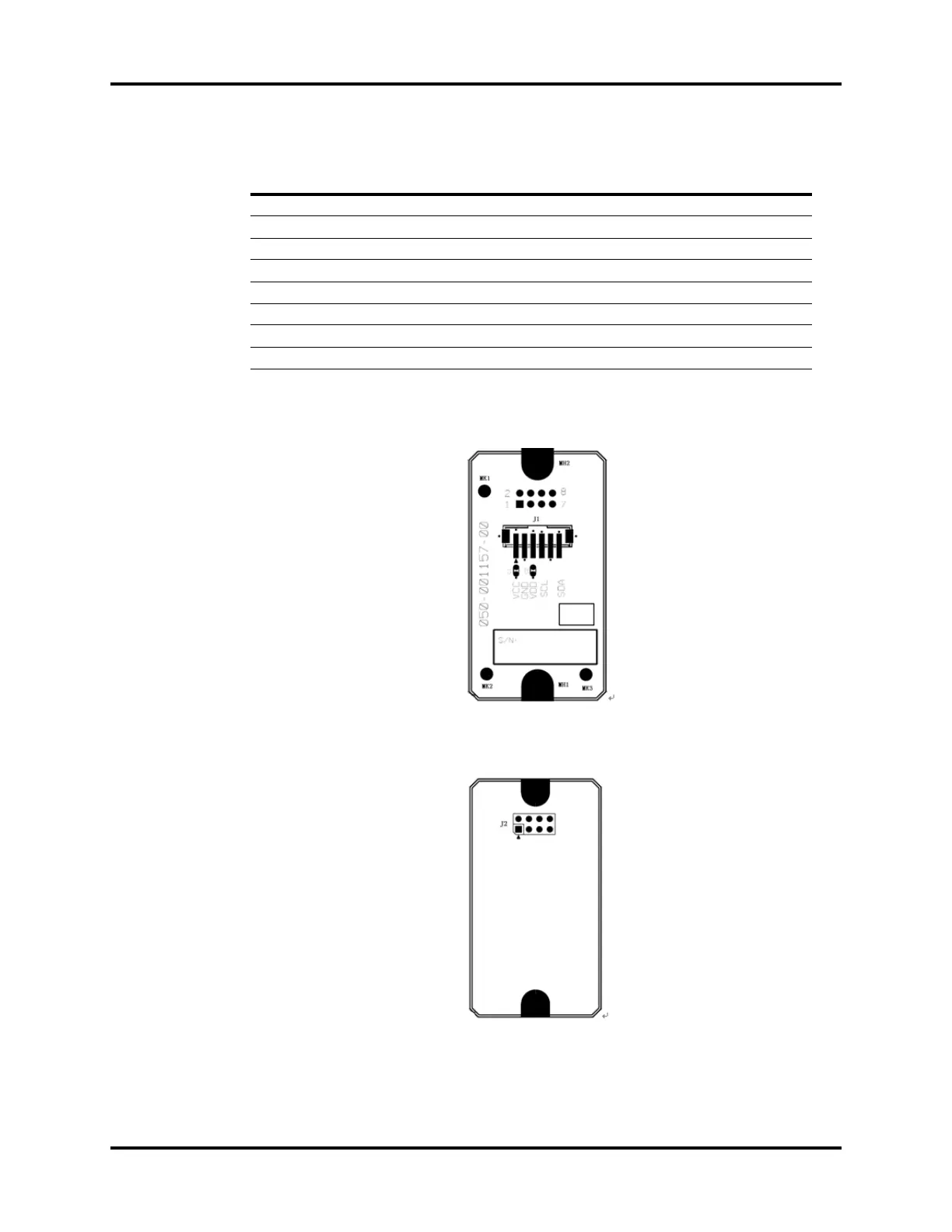

FIGURE 1-95 O2 Flow Sensor Interface Board, Top View
FIGURE 1-96 O2 Flow Sensor Interface Board, Bottom View
PIN NAME FUNCTION
1 VCC 5 V Power Supply
2 NC Not Connected internally
3 VDD 3.3 V Power Supply
4GND Ground
5 N2O_SCL N2O Flow Sensor IIC Clock Signal
6GND Ground
7 N2O_SDA N2O Flow Sensor IIC Data Signal
8GND Ground
