Mindray A7 Service Manual

A7™ Service Manual 046-006272-00 6 - 57
Repair and Disassembly Disassemble the Assemblies
6.2.9 Disassemble the Vacuum Suction Related Assembly
6.2.9.1 Remove the Overfill Protection Cup Assembly
1. Open the service door and refer to 6.2.1.1.
2. Unplug the tube connected to the overfill protection cup and unscrew the three screws fixing
the cup to remove this assembly.

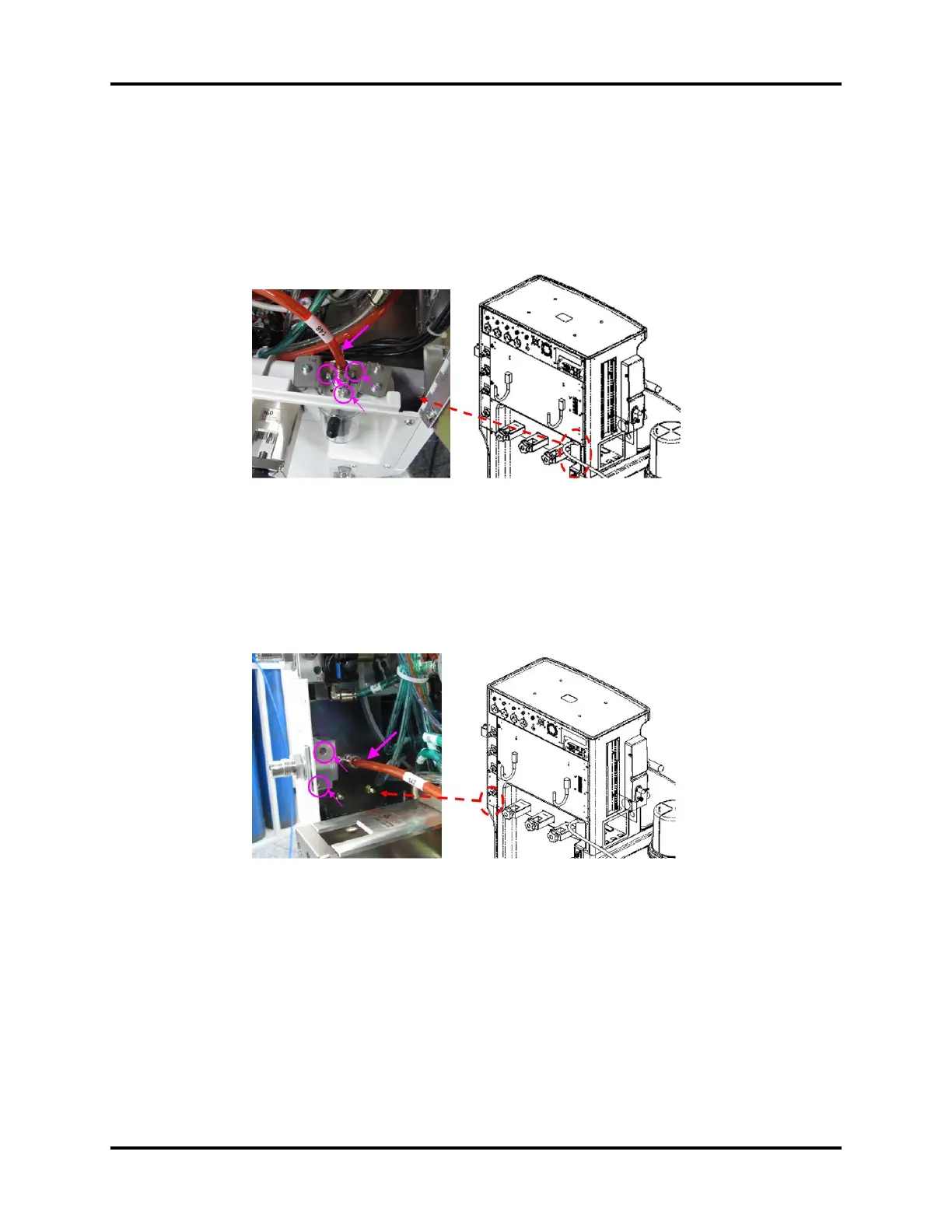

FIGURE 6-124
6.2.9.2 Remove the pipeline vacuum inlet assembly
1. Open the service door and refer to 6.2.1.1.
2. Remove the rear cover plate assembly and refer to 6.2.3.4.
3. Unplug the tube connected to the pipeline vacuum inlet assembly.
4. Unscrew the two screws fixing the pipeline vacuum inlet assembly to remove the assembly.
FIGURE 6-125
