A7™ Ser
vice Manual
046-006272-00
6 - 65
Repair and Disassembly
Disassemble the Assemblies
6.2.15
Remov
e
the A
C
GO Assembly (elec
tronically contr
olled)

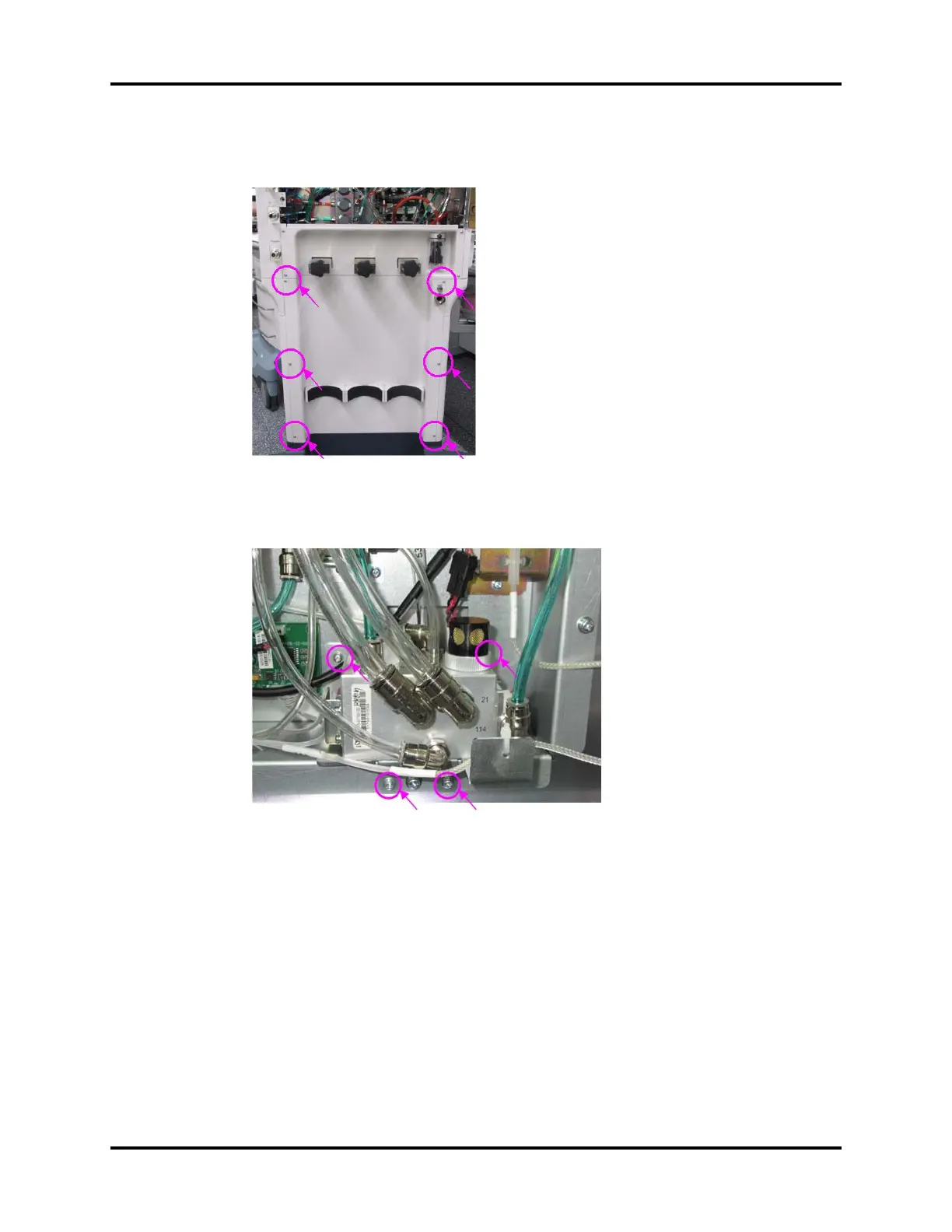

1.
Unscrew
the 6 screws to remove
the back cover pl
ate of the car
t.
FIGURE 6-142
2.
Unplug the tube
s and cables fr
om the AC
GO assembly (e
lectronically controlled).
3.
Unscrew the
four scr
ews to remo
ve the A
C
GO
assembly (electro
nically controlle
d)l.
FIGURE 6-143
