A7™ Ser
vice Manual
046-006272-00
6 - 3
Repair and Disassembly
Disassemble the Assemblies
6.2
Disassemble the Assemblies
6.2.1
Disassemble the Internal
Assemblies of the Machine
Upper Half
6.2.1.1
Open the Service Door
T
urn the two screws on the
service door coun
ter-clockwise one half turn to open the door
.

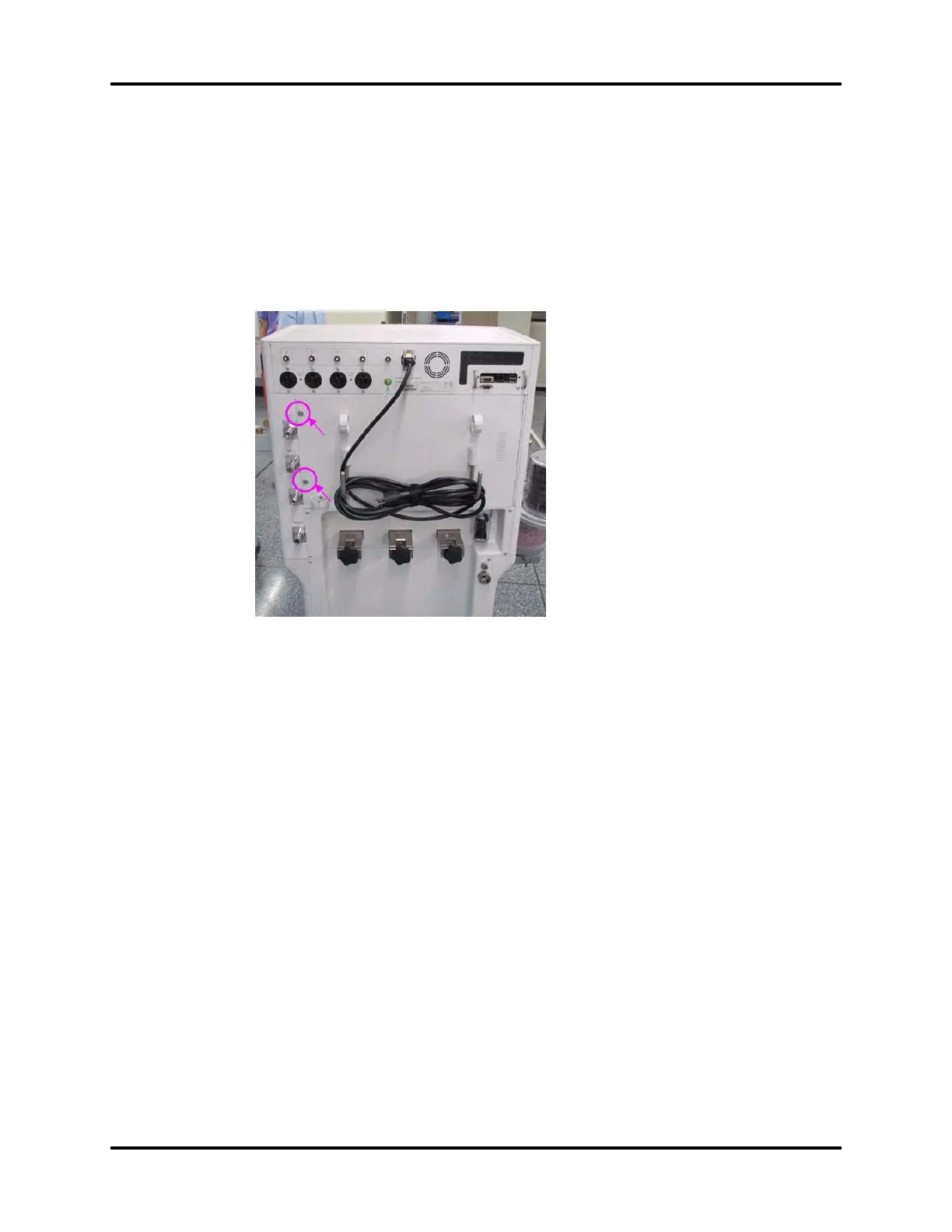

FIGURE 6-1
360
362
