A7™ Service Manual 046-006272-00 6 - 77
Repair and Disassembly Disassemble the Breathing System

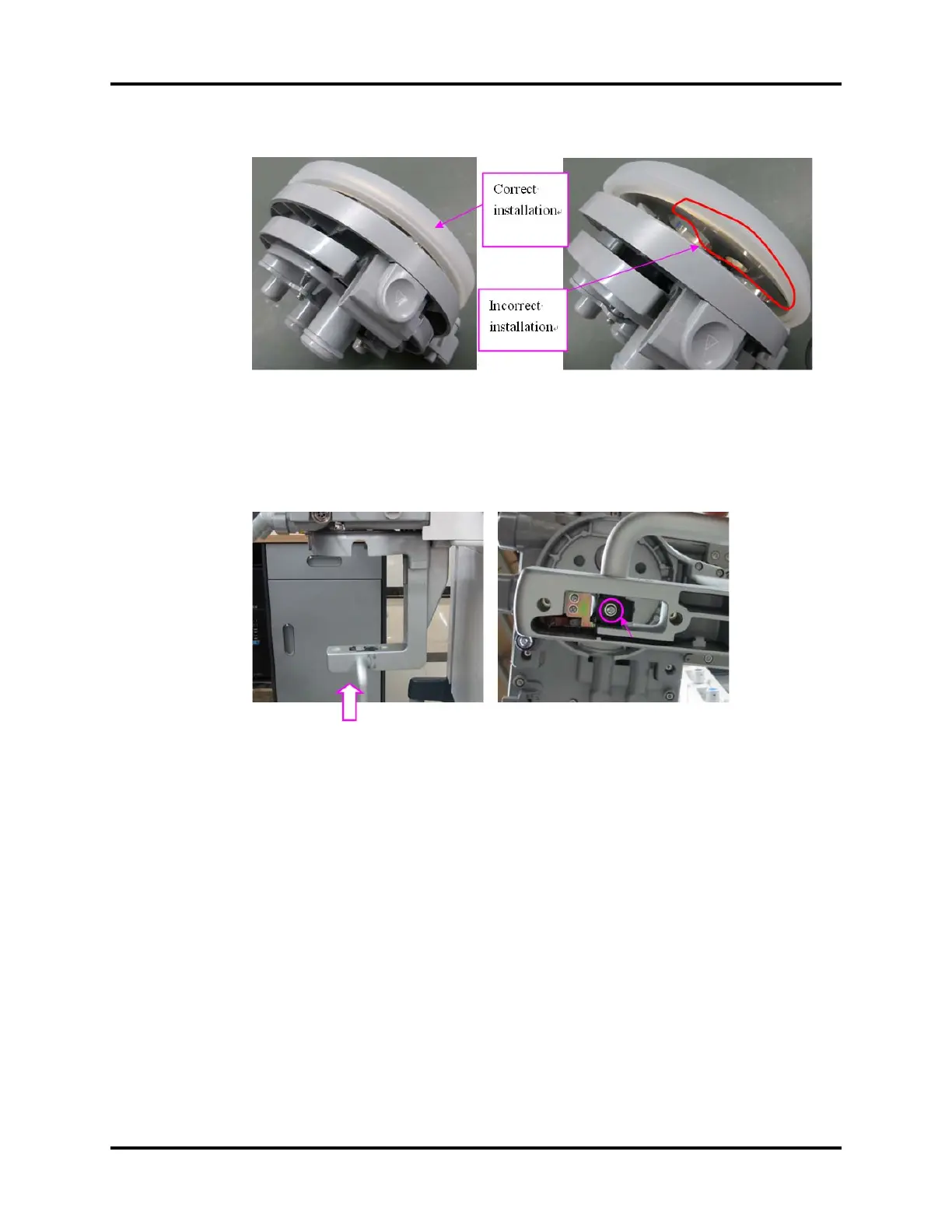

FIGURE 6-164
6.3.6 Remove the Prepak Handle
1. Refer to 6.3.4 and 6.3.5 to remove the absorber canister assembly and CO2 bypass assembly.
2. Unscrew the screw to remove the handle and the cam.
FIGURE 6-165
