A7™ Service Manual 046-006272-00 6 - 27
Repair and Disassembly Disassemble the Assemblies

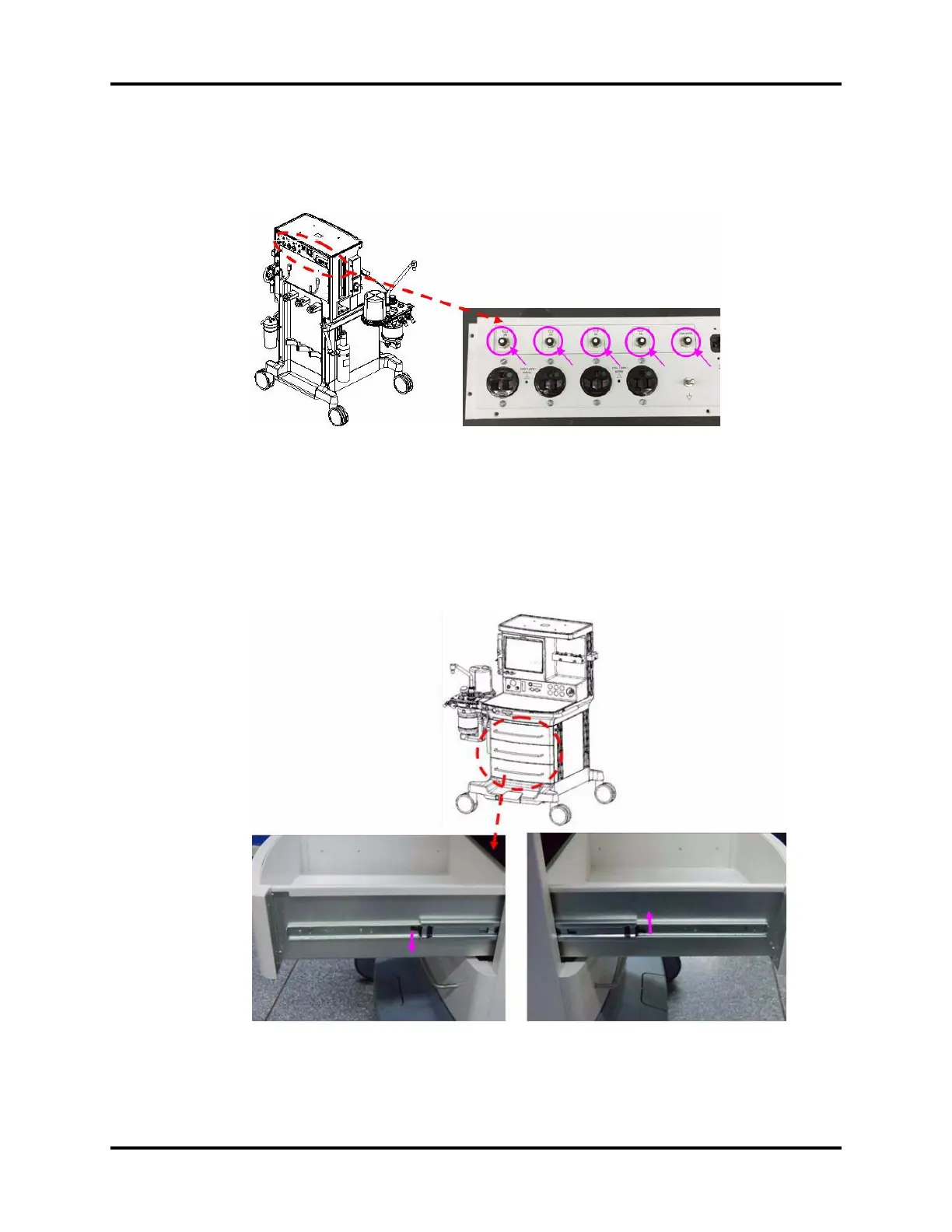

Remove the Breaker Assembly
1. Remove the rear panel assembly of the hardware box.
2. Unscrew the breaker screws to remove each breaker.
FIGURE 6-51
6.2.3 Disassemble the Work Surface
6.2.3.1 Remove the Drawer Assembly
1. Pull out the drawer until the black locking piece on the rail can be seen.
2. Lift up the locking piece on the right rail of drawer, and press down on the locking piece on the
left rail at the same time.
FIGURE 6-52
3. Take out the drawer.

Mindray A7 Specifications

General

Type	Anesthesia Workstation
Brand	Mindray
Model	A7
Display	15-inch color touchscreen
Oxygen Flush	Yes
Gas Inlets	O2, N2O, Air
Ventilation Modes	SIMV, PSV
Breathing System	Integrated
Gas Monitoring	O2, CO2, N2O
Monitoring Parameters	FiO2
CO2 Monitoring	Mainstream or Sidestream
Power Supply	100-240 V, 50/60 Hz
