Mindray A7 Service Manual

Disassemble the Assemblies Repair and Disassembly
6 - 28 046-006272-00 A7™ Service Manual

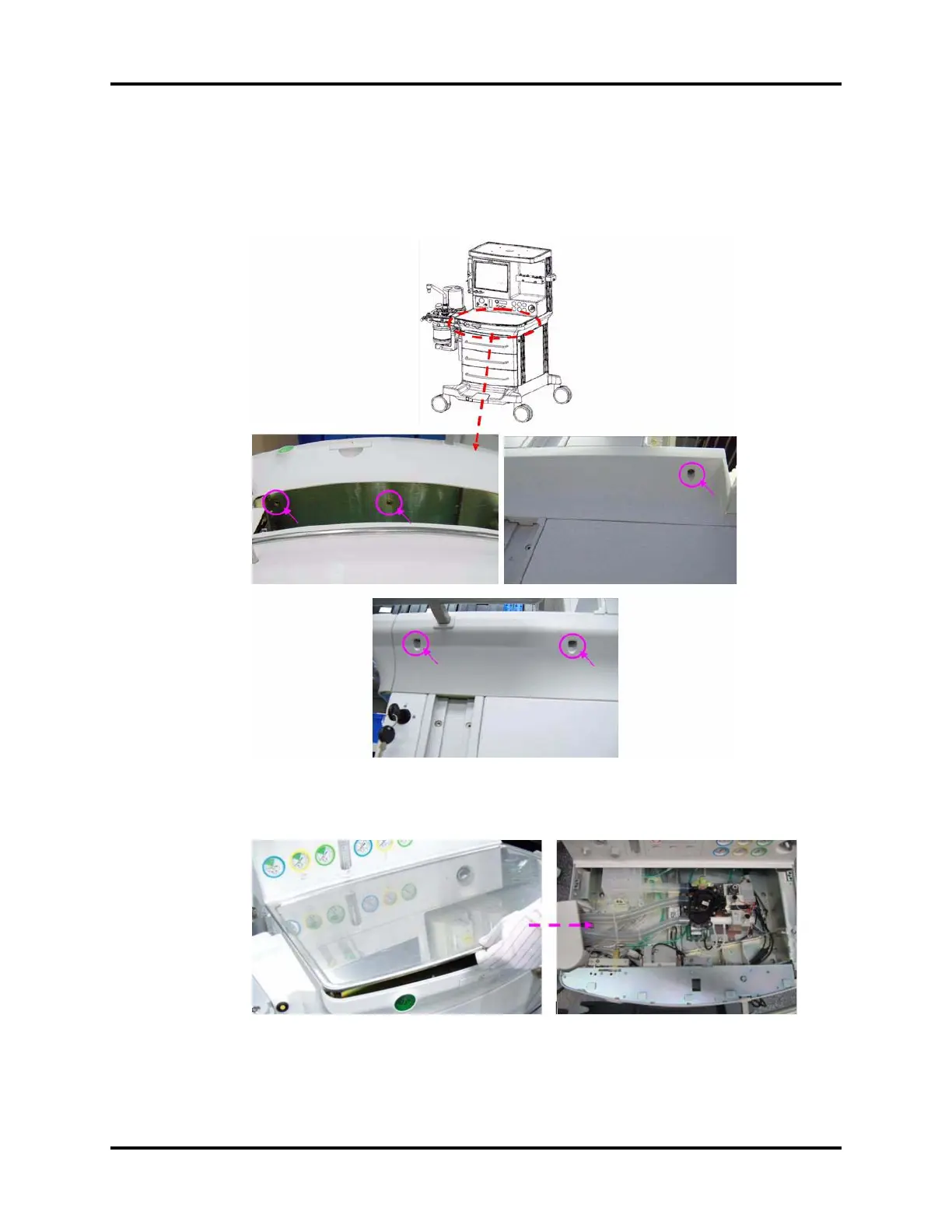

6.2.3.2 Remove the Work Surface Cover Plate
1. Remove the first drawer.
2. Pull out the auxiliary work surface.
3. Unscrew the five screws on the work surface cover plate.
FIGURE 6-53
4. .Lift off the cover plate from the work surface. When the cover plate is removed, the internal
structure of the work surface is shown as below:
FIGURE 6-54

Mindray A7 Specifications

General

Type	Anesthesia Workstation
Brand	Mindray
Model	A7
Display	15-inch color touchscreen
Oxygen Flush	Yes
Gas Inlets	O2, N2O, Air
Ventilation Modes	SIMV, PSV
Breathing System	Integrated
Gas Monitoring	O2, CO2, N2O
Monitoring Parameters	FiO2
CO2 Monitoring	Mainstream or Sidestream
Power Supply	100-240 V, 50/60 Hz
