Disassemble the Assemblies Repair and Disassembly

6 - 38 046-006272-00 A7™ Service Manual

6.2.5 Disassemble the Display

1. Open the service door and refer to “Open the Service Door” on page 6-3..

2. Remove the related cables and tubes from hardware box and unscrew the four mounting

screws to remove the display.

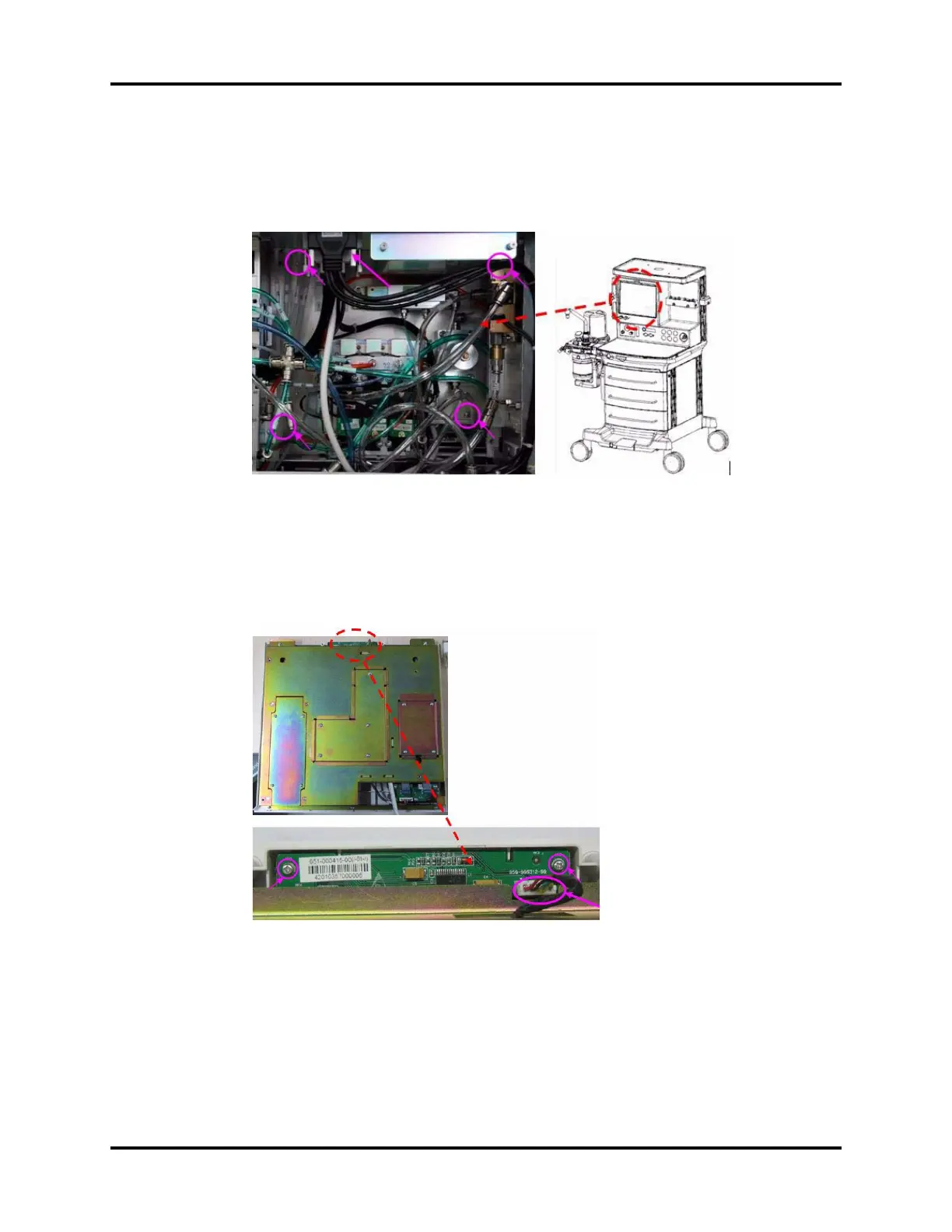

FIGURE 6-78

6.2.5.1 Remove the Alarm Lamp Board

1. Remove the display assembly.

2. Unplug the related cables from the alarm lamp board.

3. Unscrew the two mounting screws on the alarm lamp board to remove the board.

FIGURE 6-79
