Mindray A7 Service Manual

A7™ Service Manual 046-006272-00 6 - 37
Repair and Disassembly Disassemble the Assemblies
6.2.4.2 Remove the Slide of the Auxiliary Work Surface
1. Remove the auxiliary work surface cover plate and refer to “Remove the Auxiliary Work Surface
Cover Plate” on page 6-36.
2. Unscrew the 7 screws of each slide to remove the slide.

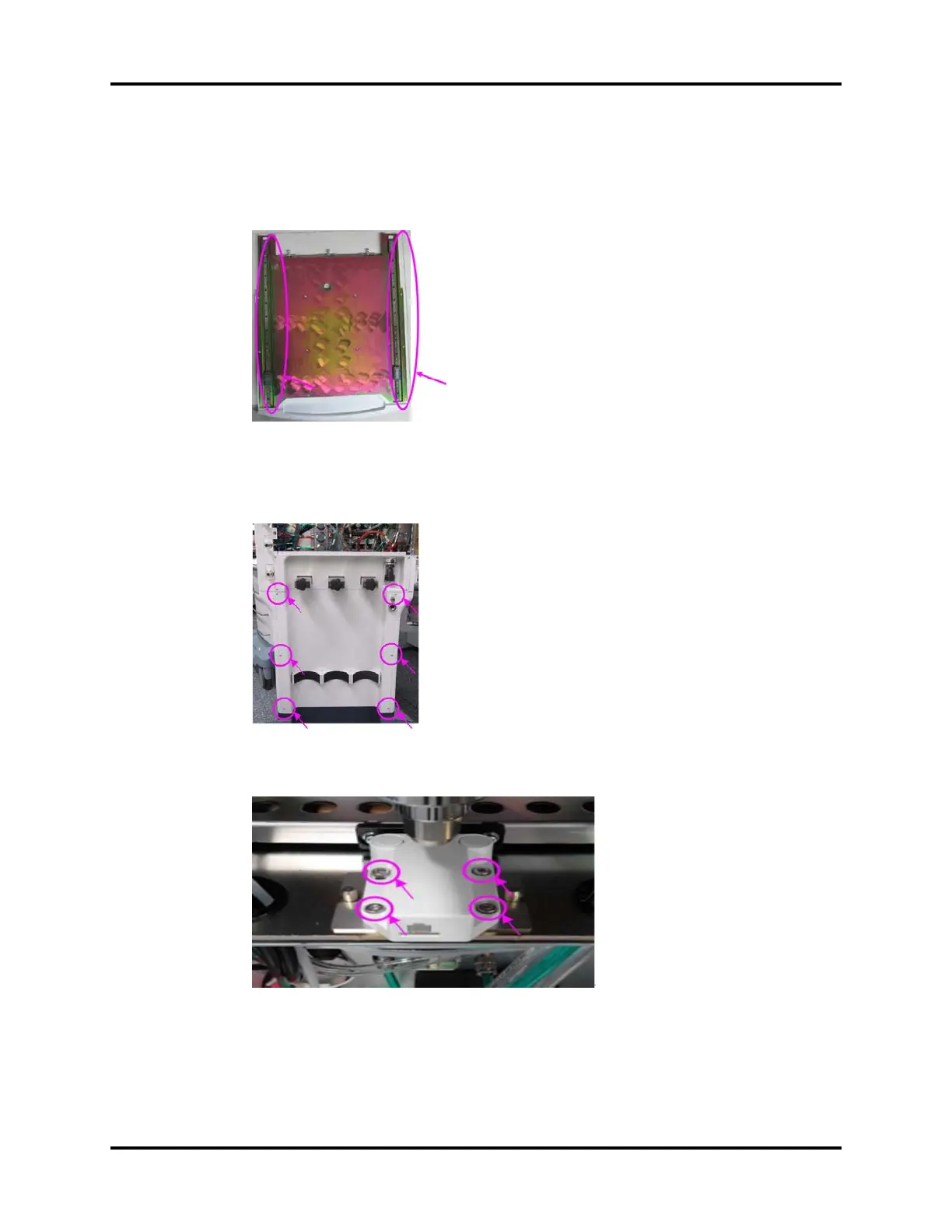

FIGURE 6-75
6.2.4.3 Remove the Non-magnetic Touch Latch
1. Unscrew the 6 screws to remove the rear cover plate of the cart.
FIGURE 6-76
2. Unscrew the four screws to remove the non-magnetic touch latch.
FIGURE 6-77

Mindray A7 Specifications

General

Type	Anesthesia Workstation
Brand	Mindray
Model	A7
Display	15-inch color touchscreen
Oxygen Flush	Yes
Gas Inlets	O2, N2O, Air
Ventilation Modes	SIMV, PSV
Breathing System	Integrated
Gas Monitoring	O2, CO2, N2O
Monitoring Parameters	FiO2
CO2 Monitoring	Mainstream or Sidestream
Power Supply	100-240 V, 50/60 Hz
