Disassemble the Assemblies Repair and Disassembly
6 - 36 046-006272-00 A7™ Service Manual
6.2.4 Disassemble the Auxiliary Work Surface
6.2.4.1 Remove the Auxiliary Work Surface Cover Plate
1. Remove the three drawers and refer to “Remove the Drawer Assembly” on page 6-27.
2. Unscrew the 16 screws and pull out the upper part of the auxiliary work surface assembly
horizontally.

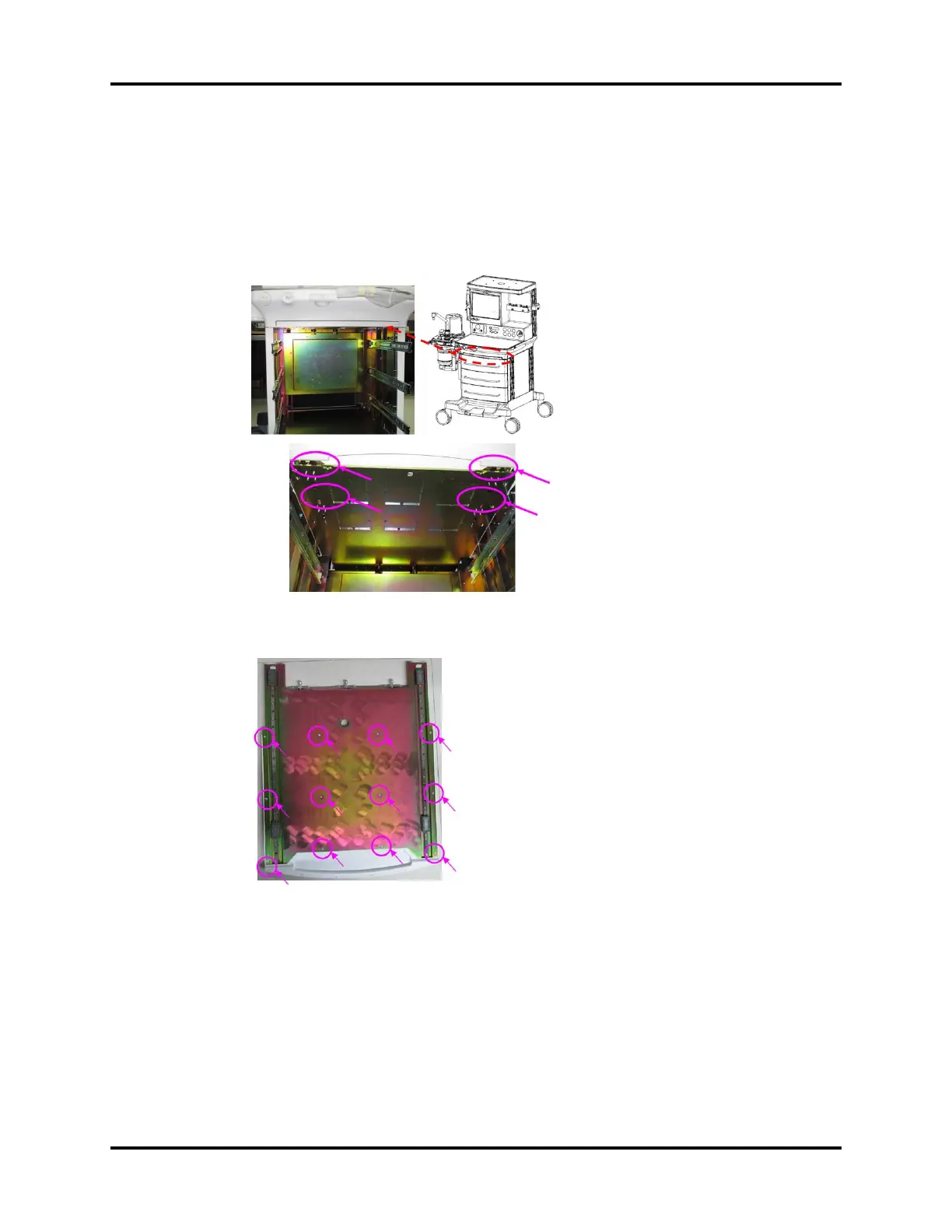

FIGURE 6-73
3. Unscrew the 12 screws to remove the auxiliary work surface cover plate.
FIGURE 6-74
