Assembly Installation Guide
2 - 18 046-006272-00 A7™ Service Manual
2.2.2 Breathing System and Breathing System Accessories and
Checkout Procedures

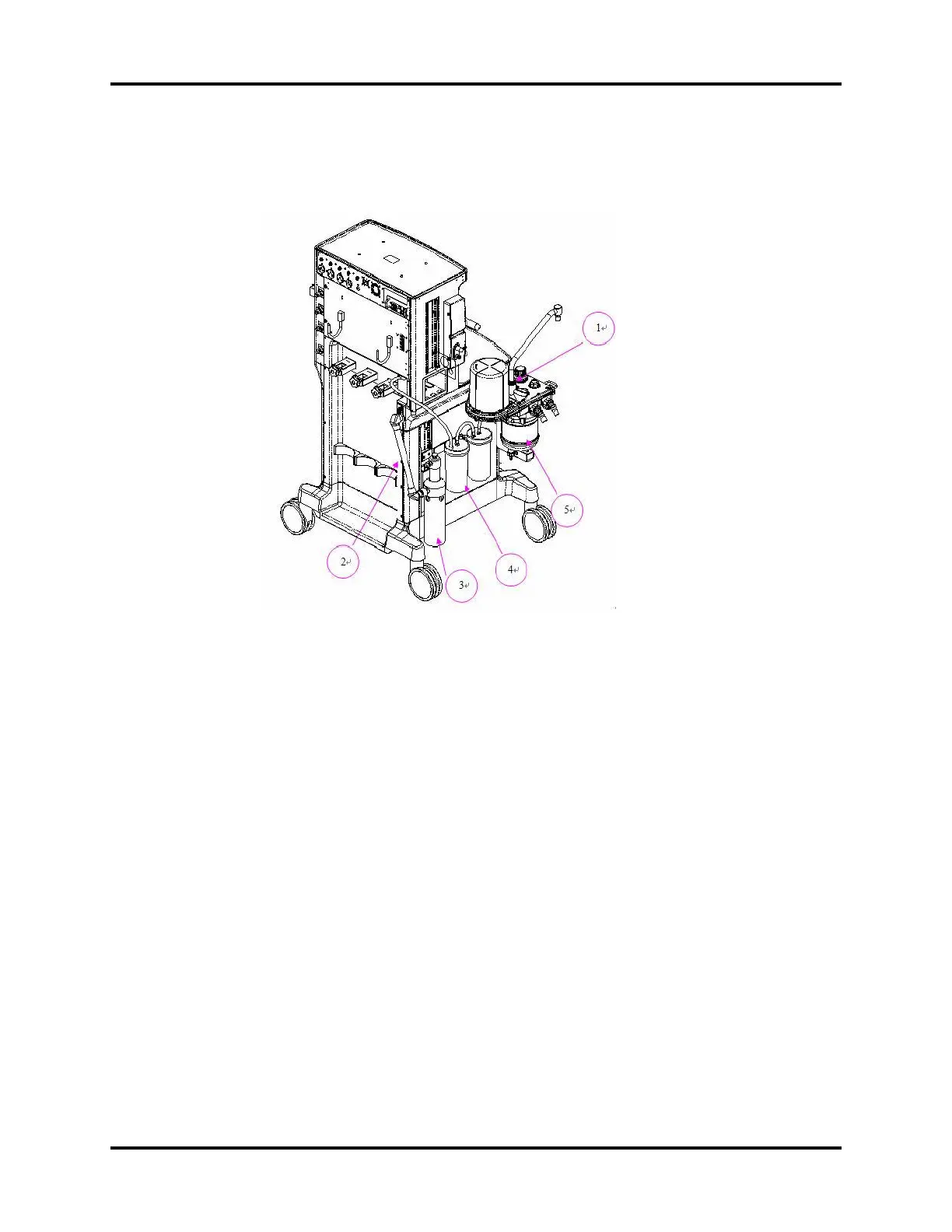

FIGURE 2-27
1. Breathing System
2. AGSS Transfer Hose
3. AGSS
4. Vacuum flask (Canada only)
5. CO2 Absorbent
2.2.3 Vaporizers (if available)
WARNING: If the vaporizer is incompatible with the A7 Anesthesia System, the
vaporizer will not work at all. Use vaporizers with Selectatec mounting
system that are compliant to ISO 8835-4. Refer to the vaporizer
manufacturer's Instructions For Use for filling or draining the vaporizer
and other information.
WARNING: The A7 Anesthesia System has a Selectatec mount system which will
only allow vaporizers to be mounted that have an interlock system
which prevents more than one vaporizer simultaneously being turned
on. Do not attempt to override this safety feature.
WARNING: Use care in lifting and manipulating vaporizers during the mounting
process as their weight may be greater than expected, based on their
size and shape.
