Disassemble the Breathing System Repair and Disassembly
6 - 90 046-006272-00 A7™ Service Manual
6.3.17 Disassemble the Automatic/Manual Ventilation Switch
Assembly
1. Remove the upper cover as per section “Remove the Front Upper Cover, Median Plate and Front
Lower Cover Assemblies” on page 6-87..

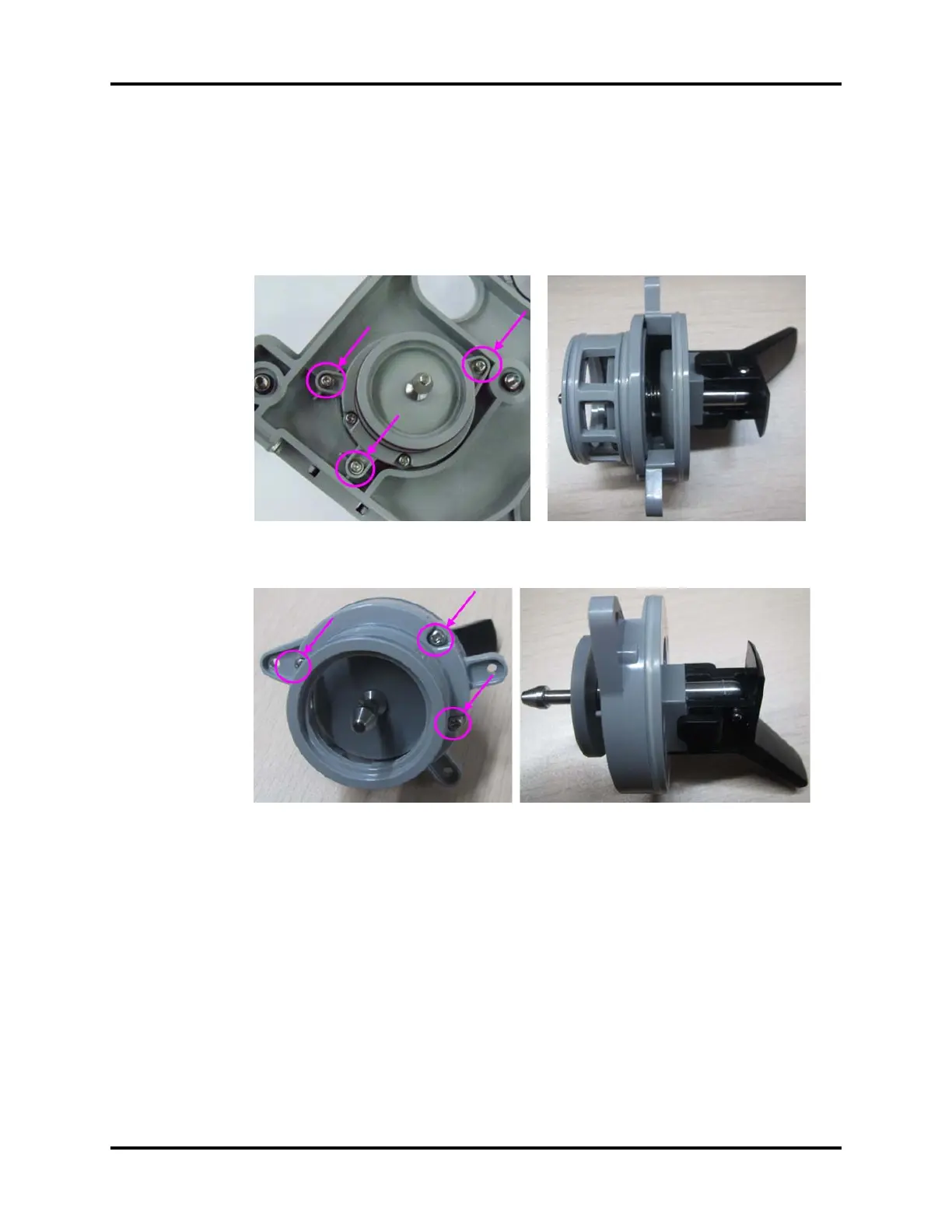

2. Turn over the upper cover assembly to access the three screws as shown in the following
picture.
FIGURE 6-189
3. Unscrew the three screws as show in the picture.
FIGURE 6-190
