A7™ Service Manual 046-006272-00 6 - 91
Repair and Disassembly Disassemble the Breathing System

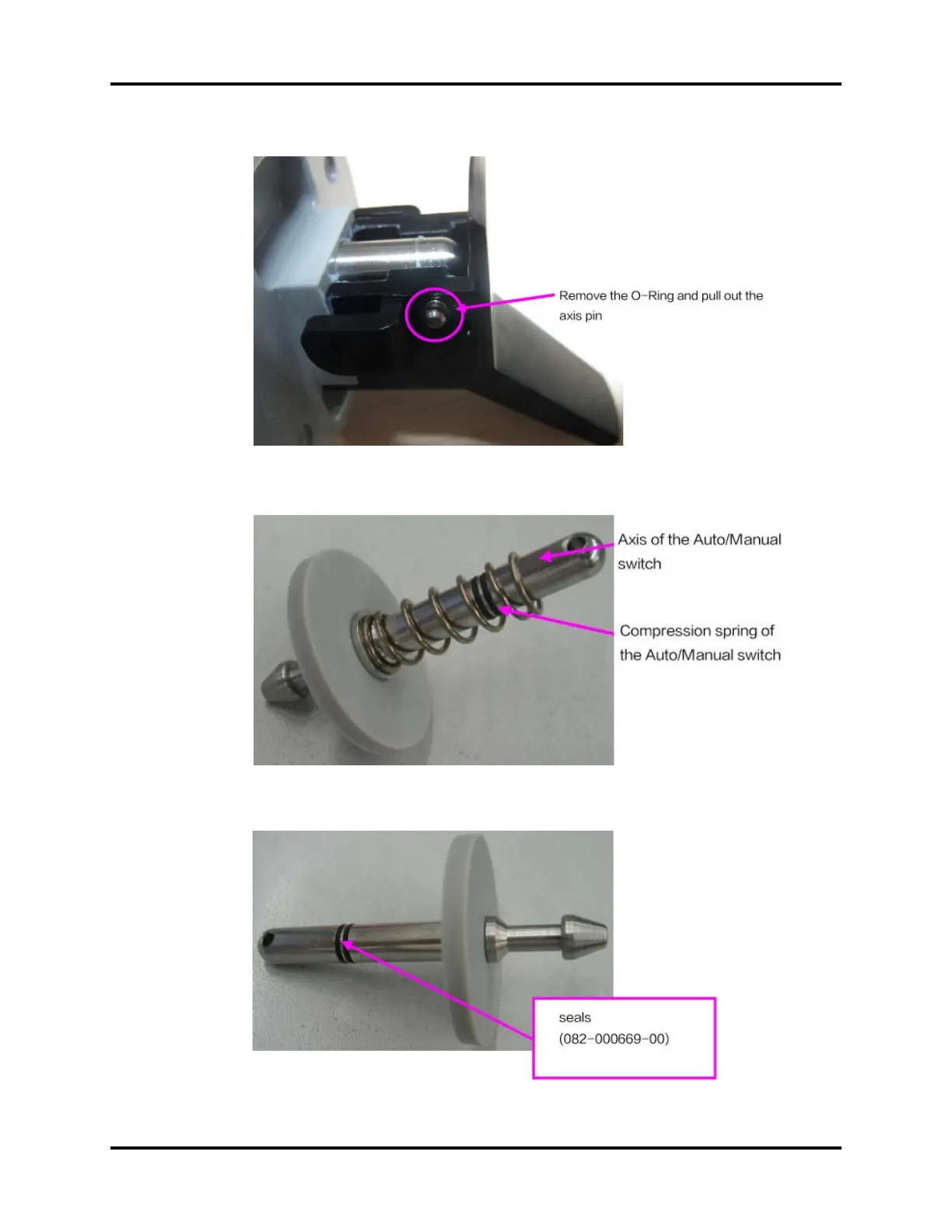

4. Remove the O-Ring and pull out the axis pin.
FIGURE 6-191
FIGURE 6-192
5. Remove the compression spring and replace the two seals (P/N 0030-10-13077)
FIGURE 6-193
