A7™ Service Manual 046-006272-00 6 - 71
Repair and Disassembly Disassemble the Breathing System
6.3 Disassemble the Breathing System
6.3.1 Remove the Breathing Tubes
NOTE: When disassembling the breathing tube, hold the tube connectors at
both ends of the tube to prevent damage to the tube.
1. Remove the filter from the Y piece.

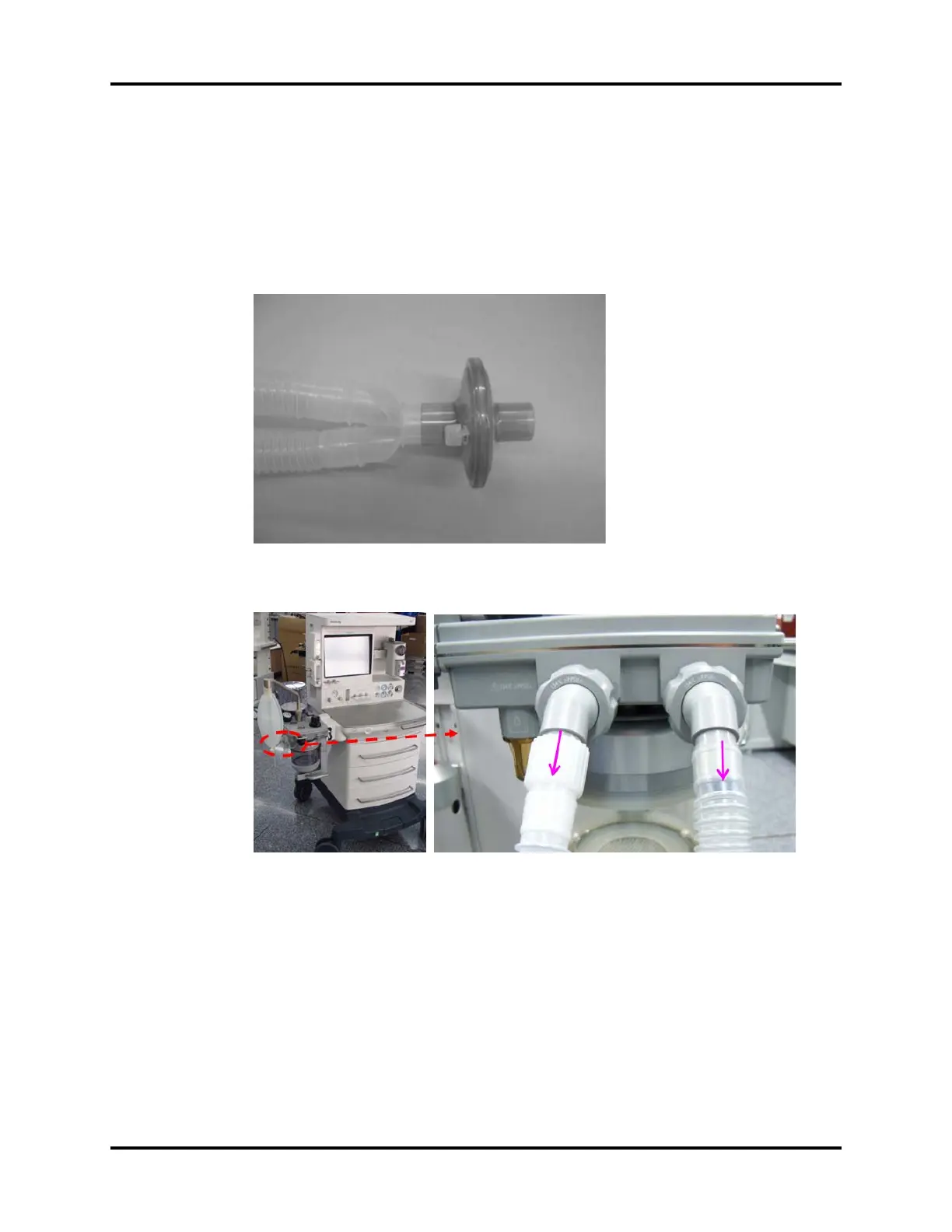

FIGURE 6-152
2. Disconnect the breathing tubes from the inspiration/expiration connectors on the circuit.
FIGURE 6-153
