A7™ Service Manual 046-006272-00 6 - 35
Repair and Disassembly Disassemble the Assemblies

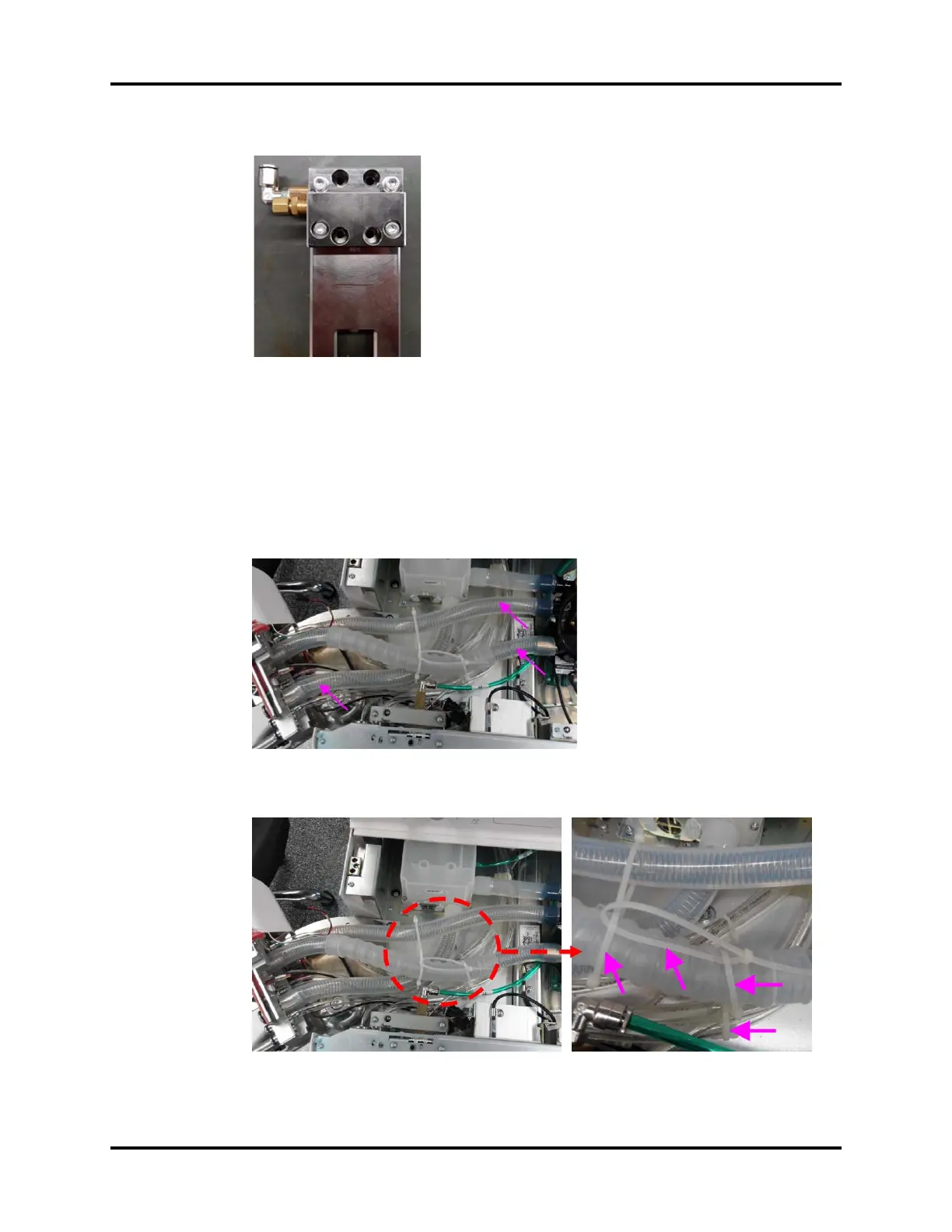

9. The removed cylinder bracket assembly is shown below
FIGURE 6-70
6.2.3.10 Remove the Spring Tube
1. Remove the work surface cover plate and refer to “Remove the Work Surface Cover Plate” on
page 6-28.
2. Remove the rotating block of breathing circle and refer to “Remove the Rotating Block of
Breathing Circle” on page 6-60.
3. Cut the cable ties on the spring tubes, then disconnect the spring tubes from the connectors.
Remove the spring tubes.
FIGURE 6-71
4. Re-install the spring tubes. Tie the spring tubes as follows:
FIGURE 6-72
To Next Page
