Disassemble the Assemblies Repair and Disassembly
6 - 58 046-006272-00 A7™ Service Manual
6.2.9.3 Remove the Vacuum Control Panel Assembly
1. Remove the module rack cabinet assembly and refer to 6.2.6.
2. Unplug the tube or plug connected to the vacuum control panel assembly and unscrew the
four screws as shown below.

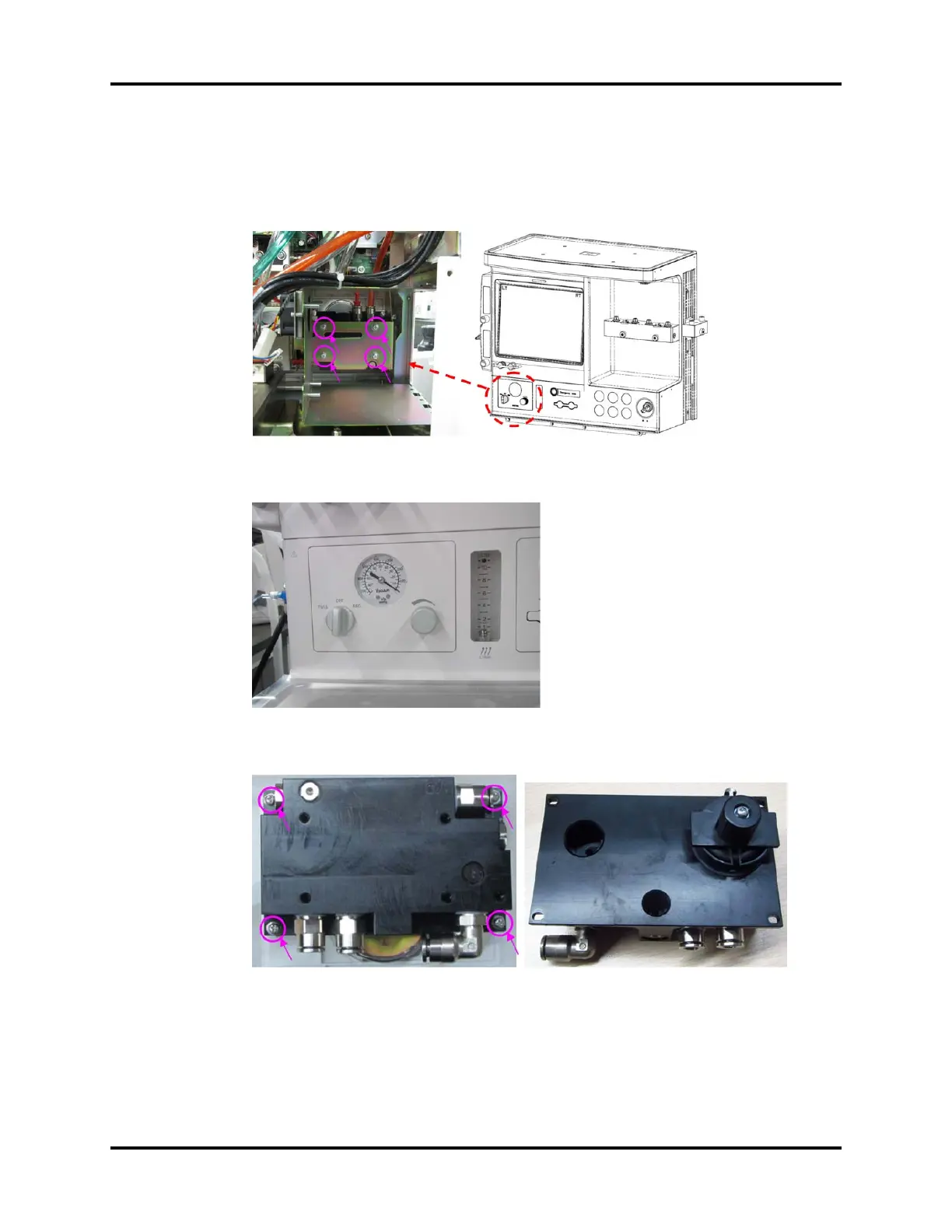

FIGURE 6-126
3. Take out the vacuum control panel assembly from the front of the machine.
FIGURE 6-127
4. Unscrew the four screws to remove the vacuum control main body assembly FRU.
FIGURE 6-128
