A7™ Service Manual 046-006272-00 4 - 41
Calibration System Calibration

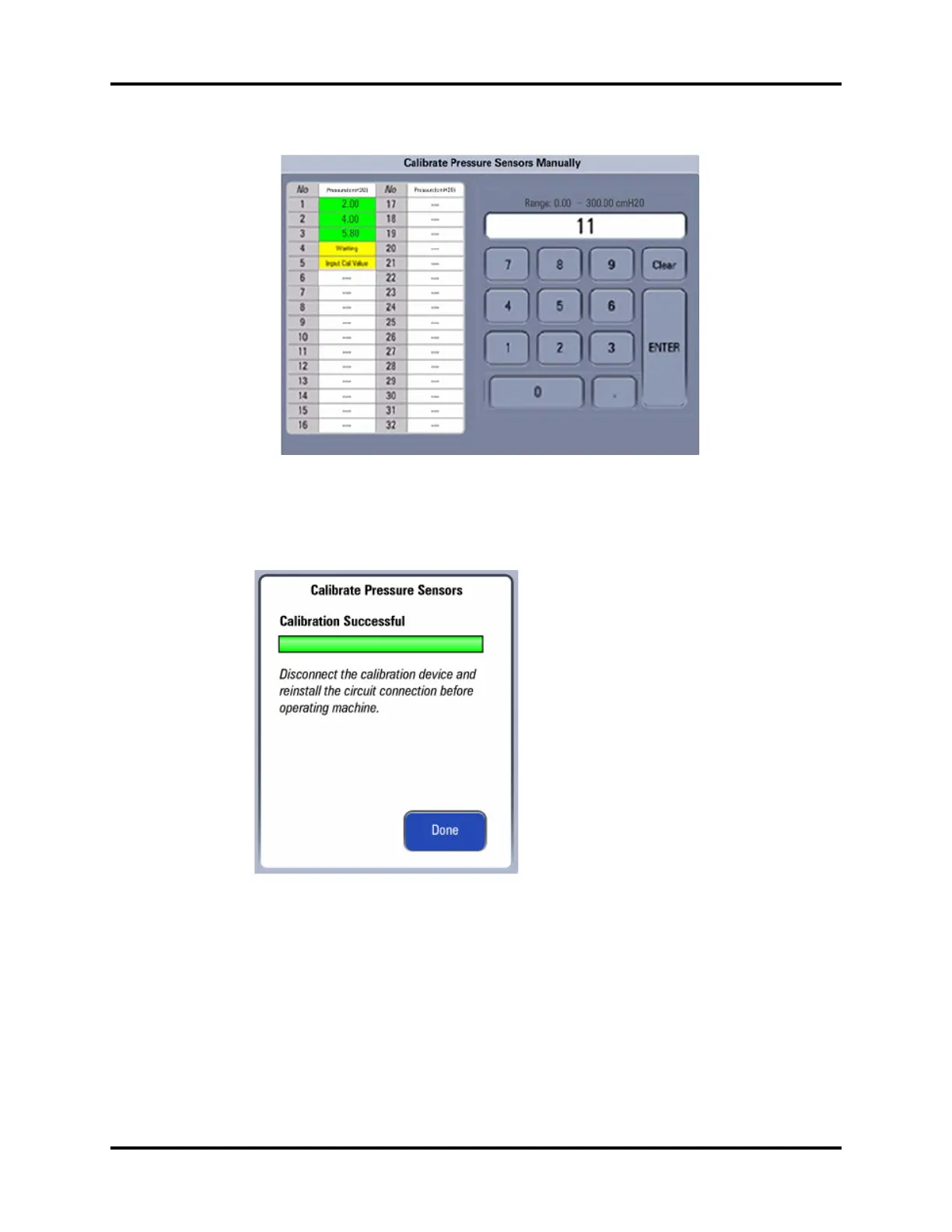

FIGURE 4-55
8. Press the Accept button and the screen shown below is displayed.
• The screen shown below is displayed after a successful pressure sensor calibration.
FIGURE 4-56
• The screen shown below is displayed if the pressure sensor calibration has failed.
