System Calibration
Calibration
4 - 48
046-006272-00
A7™ Ser
vice Manual
FIGURE 4-62
5.

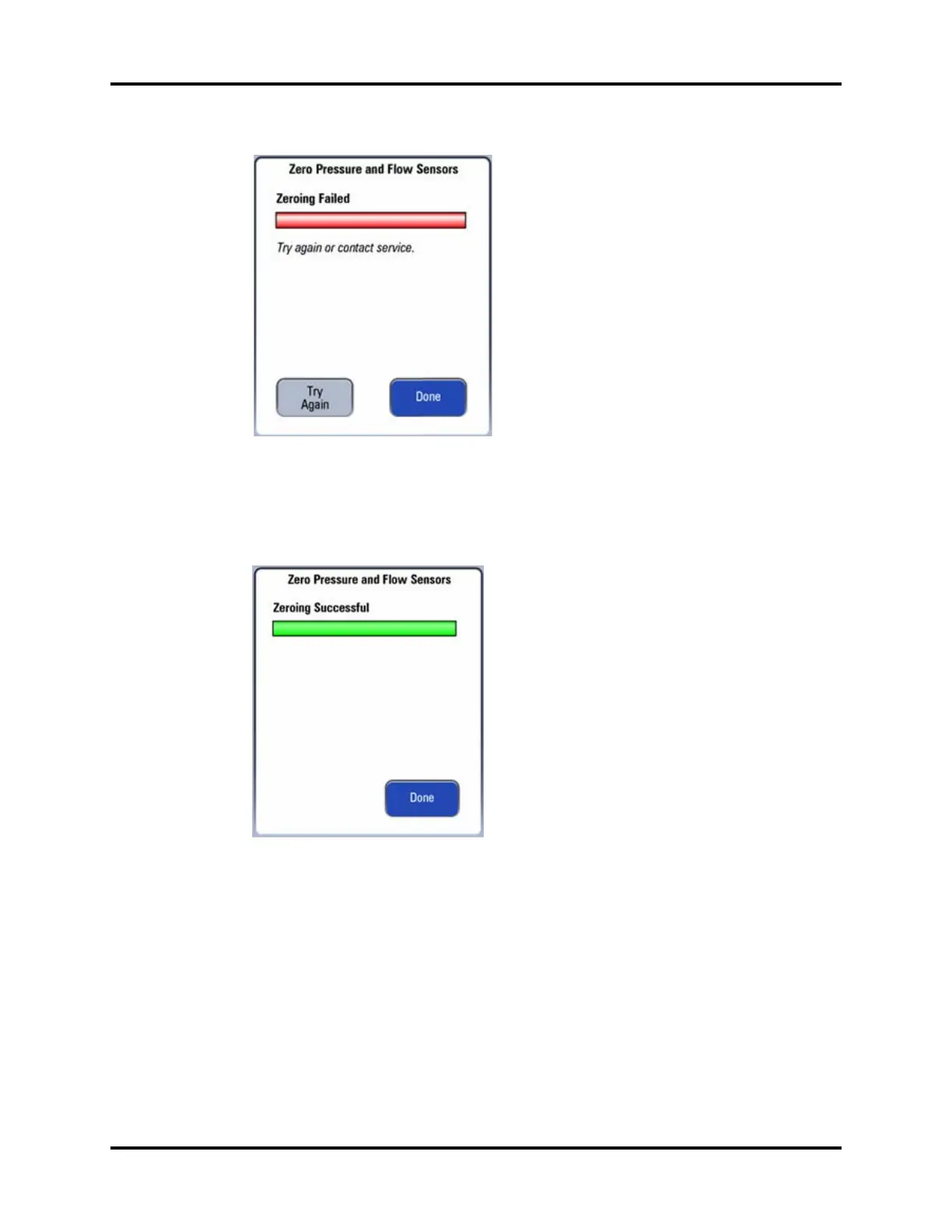

The screen sho
w
n below is displa
yed after a suc
ce
ssful zeroing. Select Done to exit the zeroing
screen.
FIGURE 4-63
NOTE:
In case of z
eroing failu
re, o
ther faults may exist
. Y
ou must isolate an
d
eliminat
e the problem.
259
261
