Pneumatic Circuit System Problems Repair and Troubleshooting
5 - 30 046-006272-00 A7™ Service Manual
FIGURE 5-15
FIGURE 5-16

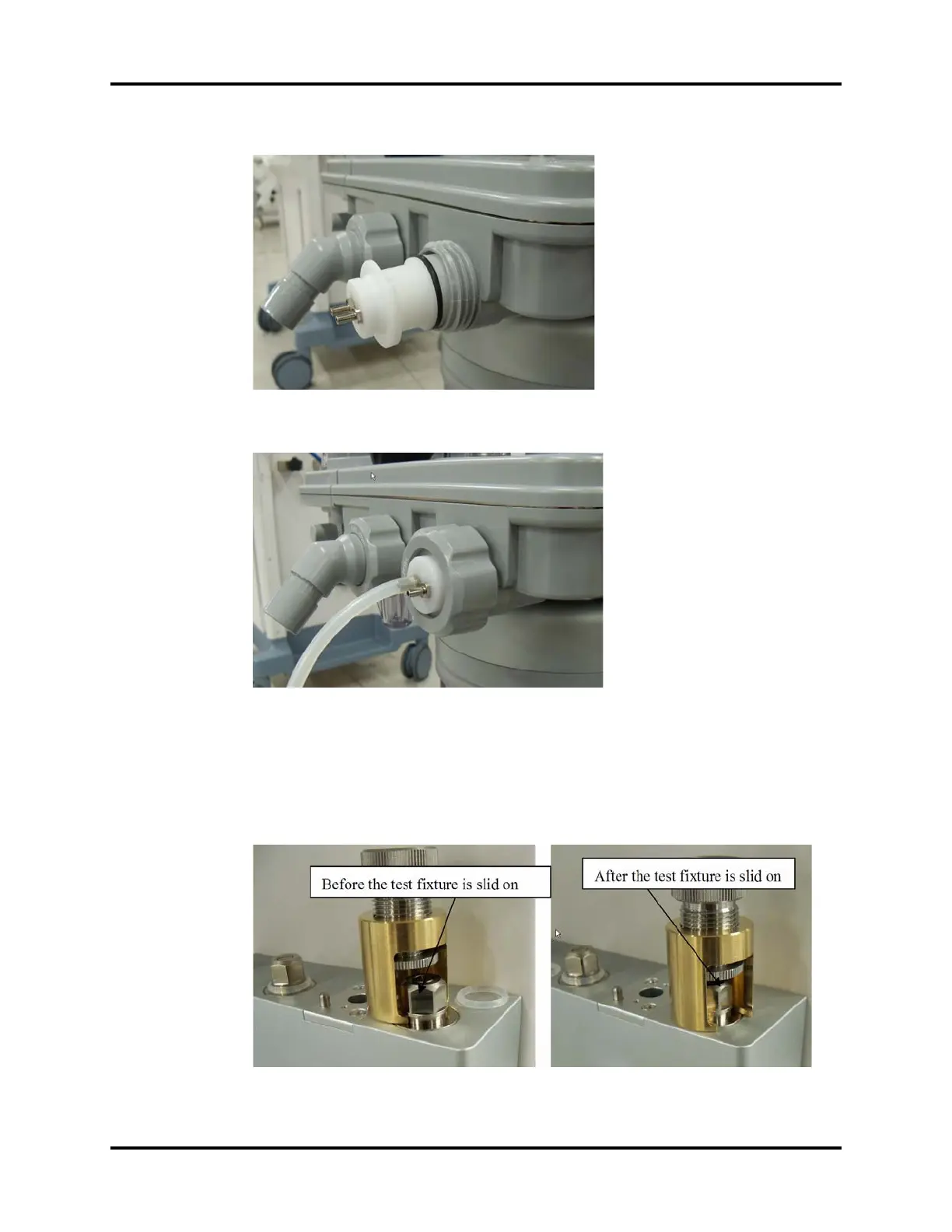

5.3.1.3 Precautions for Use of Vaporizer Manifold Test Fixture
When using the vaporizer manifold test fixture, remove the o-ring seal on the vaporizer manifold
assembly. Then slide the test fixture onto the connector, as shown below.
FIGURE 5-17
