A7™ Service Manual 046-006272-00 5 - 65
Repair and Troubleshooting Pneumatic Circuit System Problems

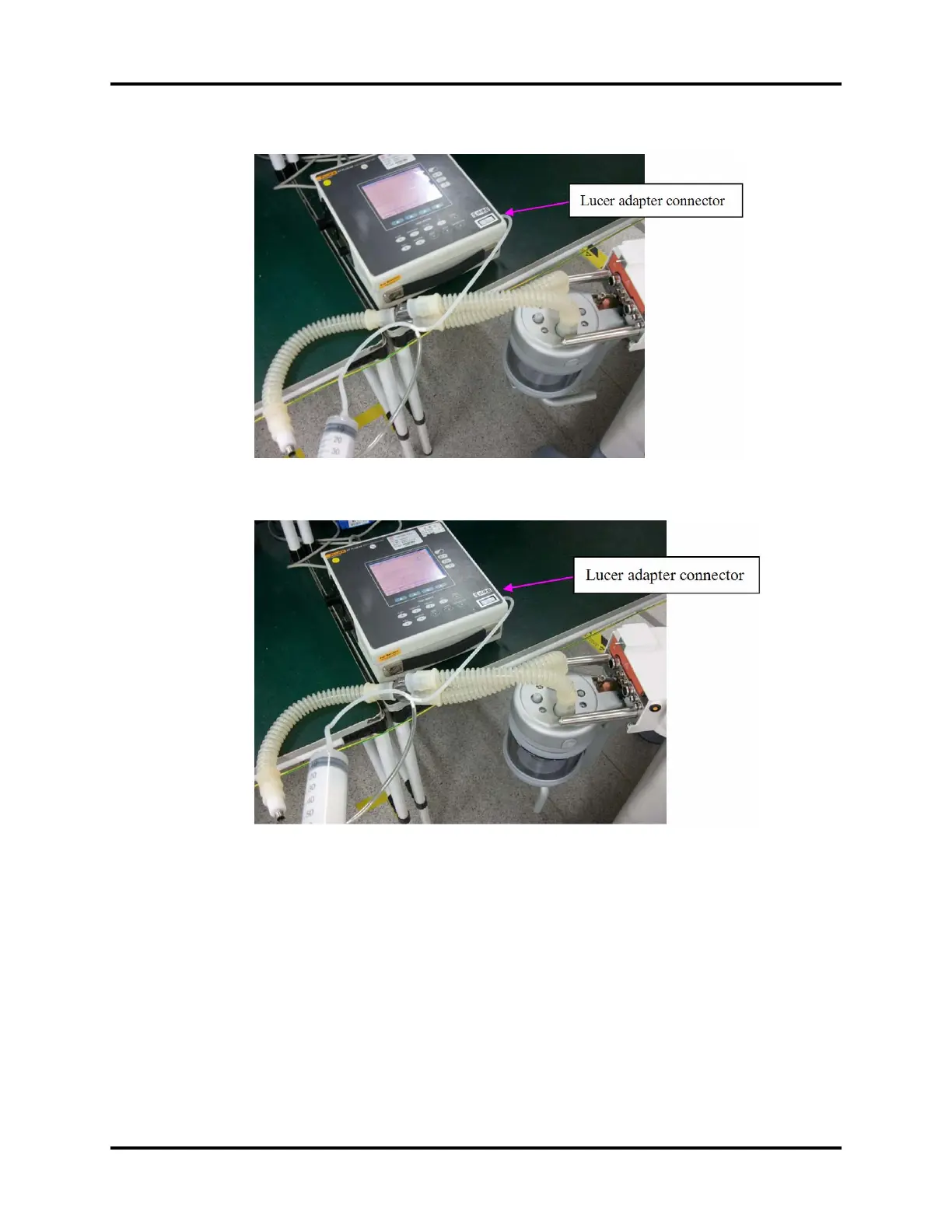

FIGURE 5-58 Bypass Off
FIGURE 5-59 Bypass On
6. Check the seals on the two connections of the lifting device. It they are damaged, replace the
seal and then re-mount the lifting device onto the breathing system.
6. Check the accessories and circuit inspiratory and expiratory parts
