A7™ Service Manual 046-006272-00 6 - 9
Repair and Disassembly Disassemble the Assemblies

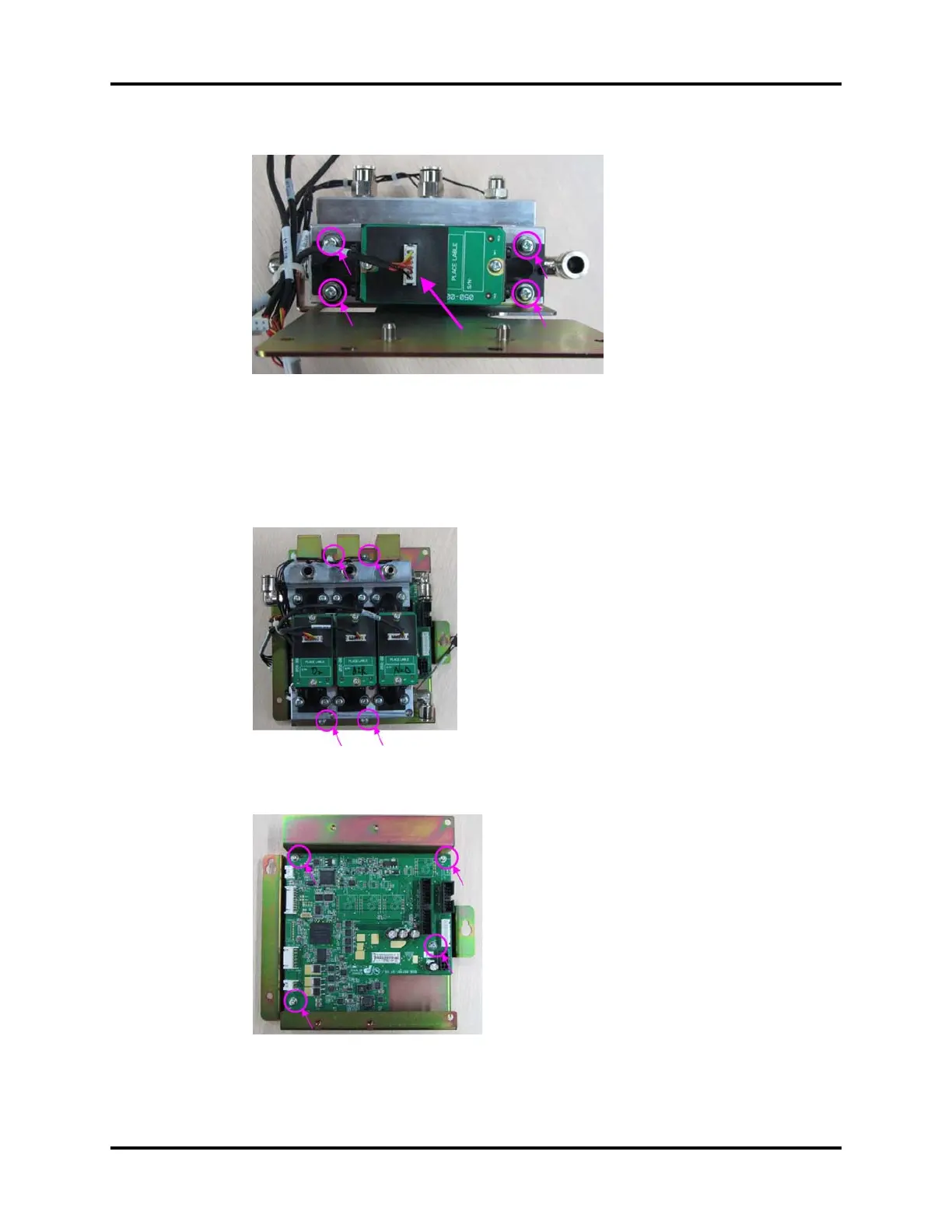

7. Disconnect the cables and unscrew the four screws to remove the total electronic flowmeter.
FIGURE 6-11
6.2.1.8 Remove the Flowmeter Monitoring Board
1. Remove the EFCS module.
2. Disconnect the cables from the flowmeter monitoring board.
3. Unscrew the four screws to remove the upper assembly.
FIGURE 6-12
4. Unscrew the four screws to remove the flowmeter monitoring board.
FIGURE 6-13
