A7™ Service Manual 046-006272-00 6 - 75
Repair and Disassembly Disassemble the Breathing System

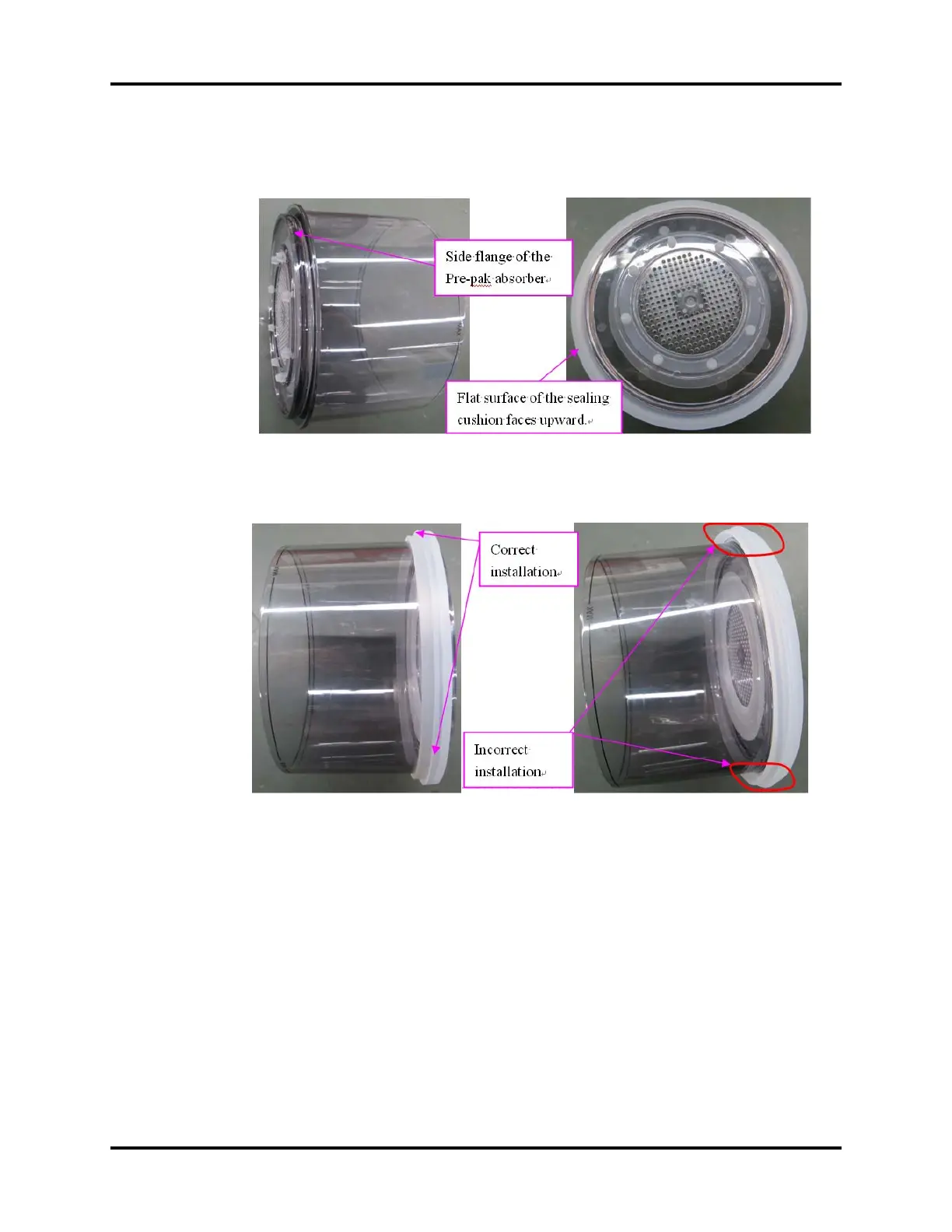

If it is necessary to replace or re-install the Pre-pak absorber sealing cushion (049-000143-00), set the
internal groove of the Pre-pak absorber sealing cushion in the side flange of the Pre-pak absorber, as
shown below..
FIGURE 6-160
Make sure that the sealing cushion is correctly installed. The comparison between correct installation
and incorrect installation is shown below..
FIGURE 6-161
