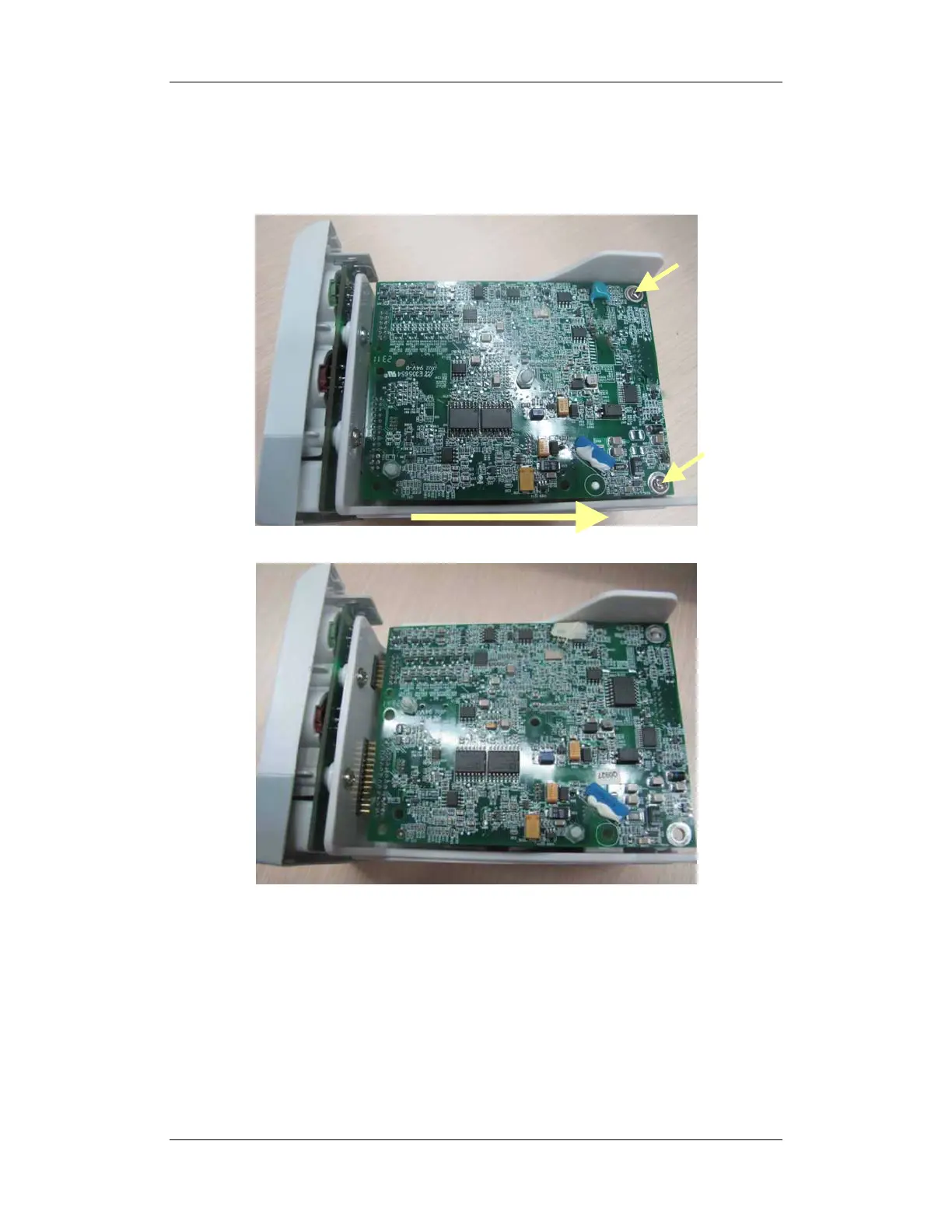

4. Tear the insulating pad off the interface board. Unscrew the two M3×6 screws on the
DVI interface board. Than unscrew the two screws beside the DVI socket , the two
screws beside micro-D socket and the two M2.5×6 screws.
NOTE
z Be careful not to damage the insulation between the DVI interface board and the
USB_Hub board. If it is damaged, stick a new one.
