5-4

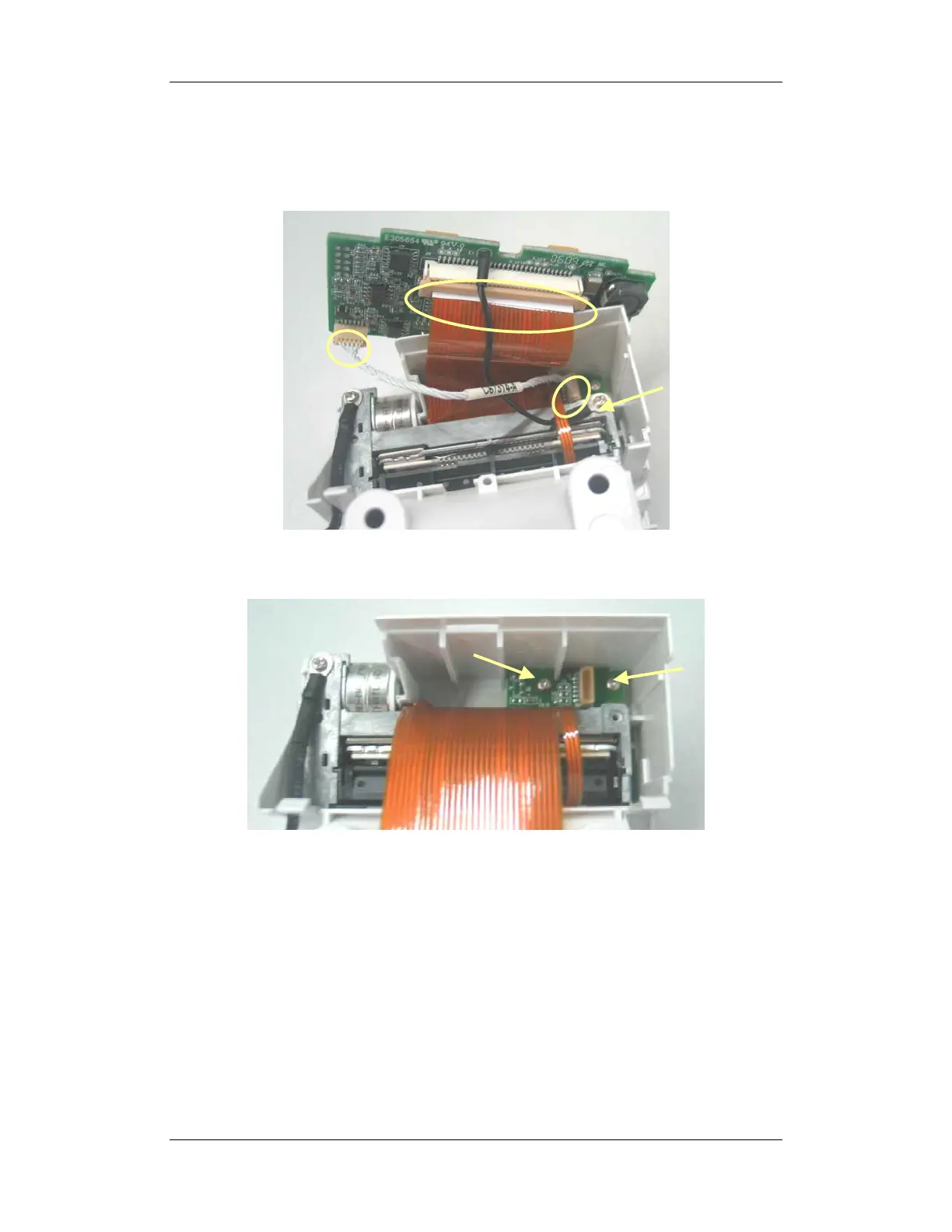

5. Pull the press bar upwards about 1 mm and then unplug the flexible cable. Remove the

cable that connects the driving board and the button board. Unscrew the PT2×6 screw

and remove the drive board’s grounding cable. Then take out the recorder driving board.

6. Unscrew the two PT2×6 screws and take out recorder’s button board.
