Structure and Assembly/Disassembly 9-5
2. Unscrew two PT3X8 screws locking the adjustable key board, and then remove the adjustable
keyboard assembly.

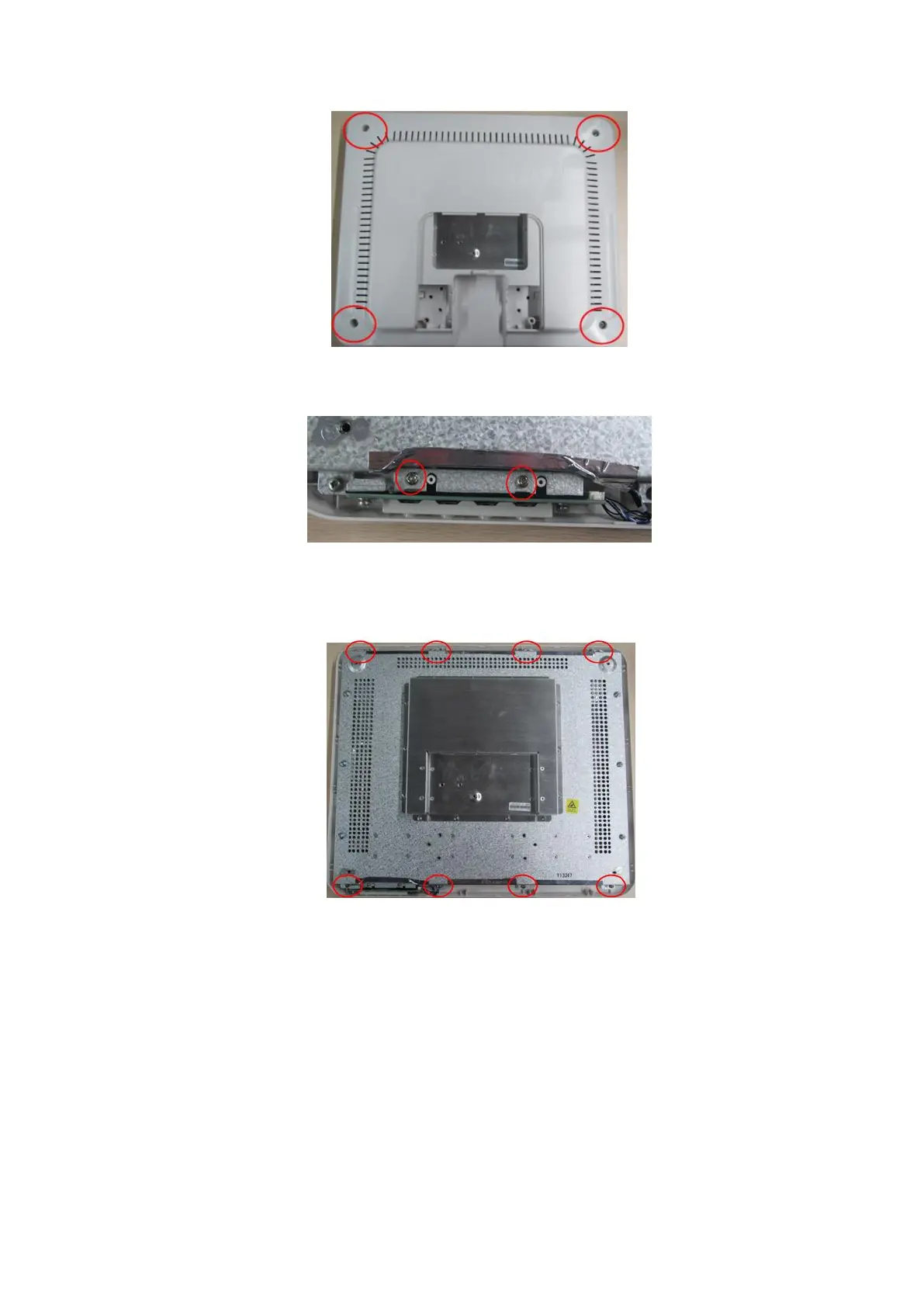

3. Unscrew eight M3X8 screws on the cassette mechanism assembly and front cover, and then
remove the front cover assembly of the monitor.
9.3.2 Probe Board Assembly
The disassembly tool: cross-headed screwdriver (M3, M4)
1. Unscrew the M4 X 8 screw on middle part of left side panel’s lower position. Lift the left side
panel upwards to remove it.
