9-22 Structure and Assembly/Disassembly

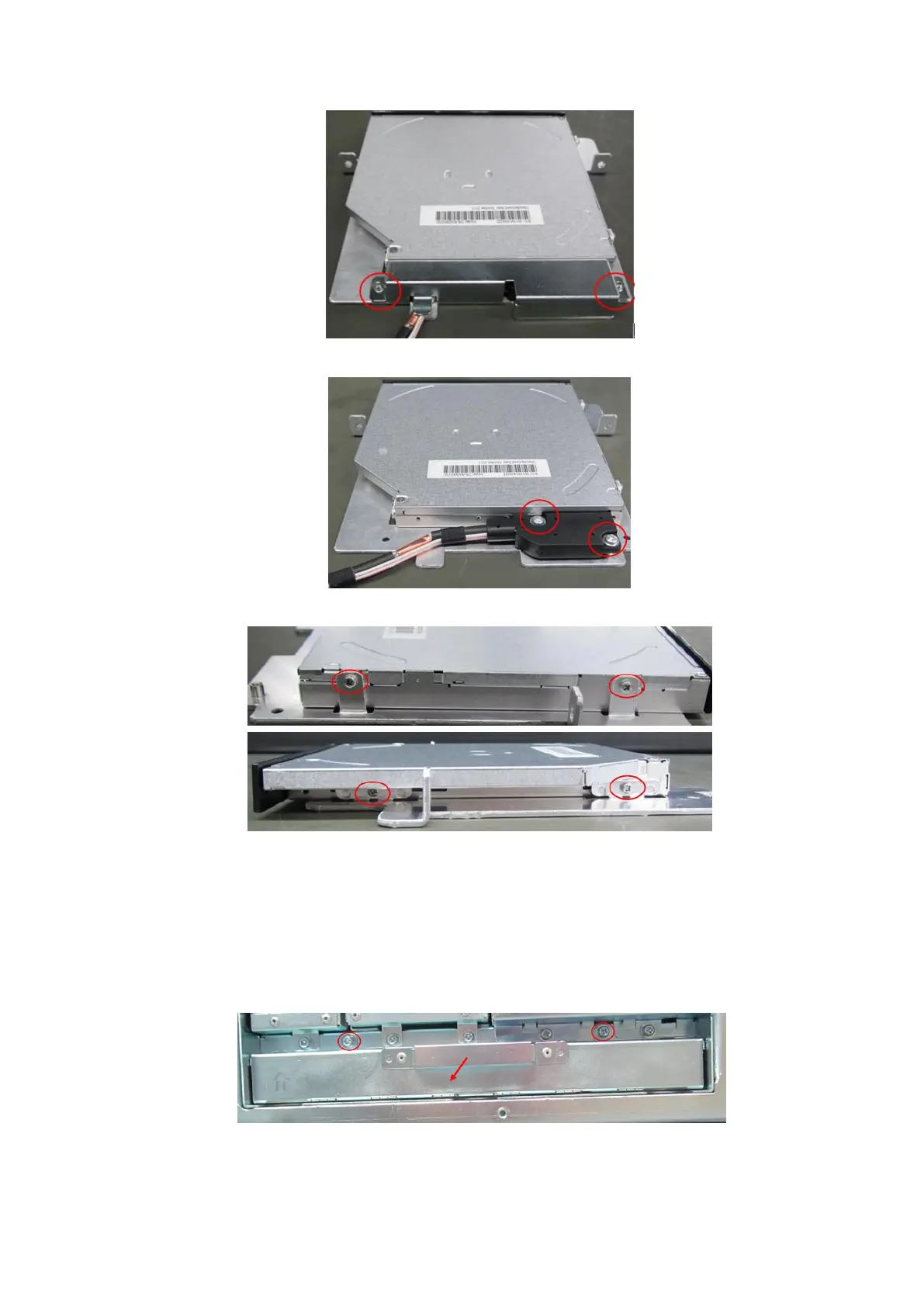

5. Unscrew two M3 X 6 screws on the back of DVD assembly to remove DVD cables.
6. Unscrew four M2 X 4 screws on DVD bracket assembly to remove DVD.
9.3.13 Inlet Fan
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Follow step 1 in Chapter 9.3.2 to remove left side panel.
2. Unscrew two M4 X 8 screws fixing the frame of the fan. Hold the metal handles to pull the fan
assembly out.
3. Unscrew 12 screws fixing the fan.
