9-
48
S
tructure
and
Assembly/
Disassembly

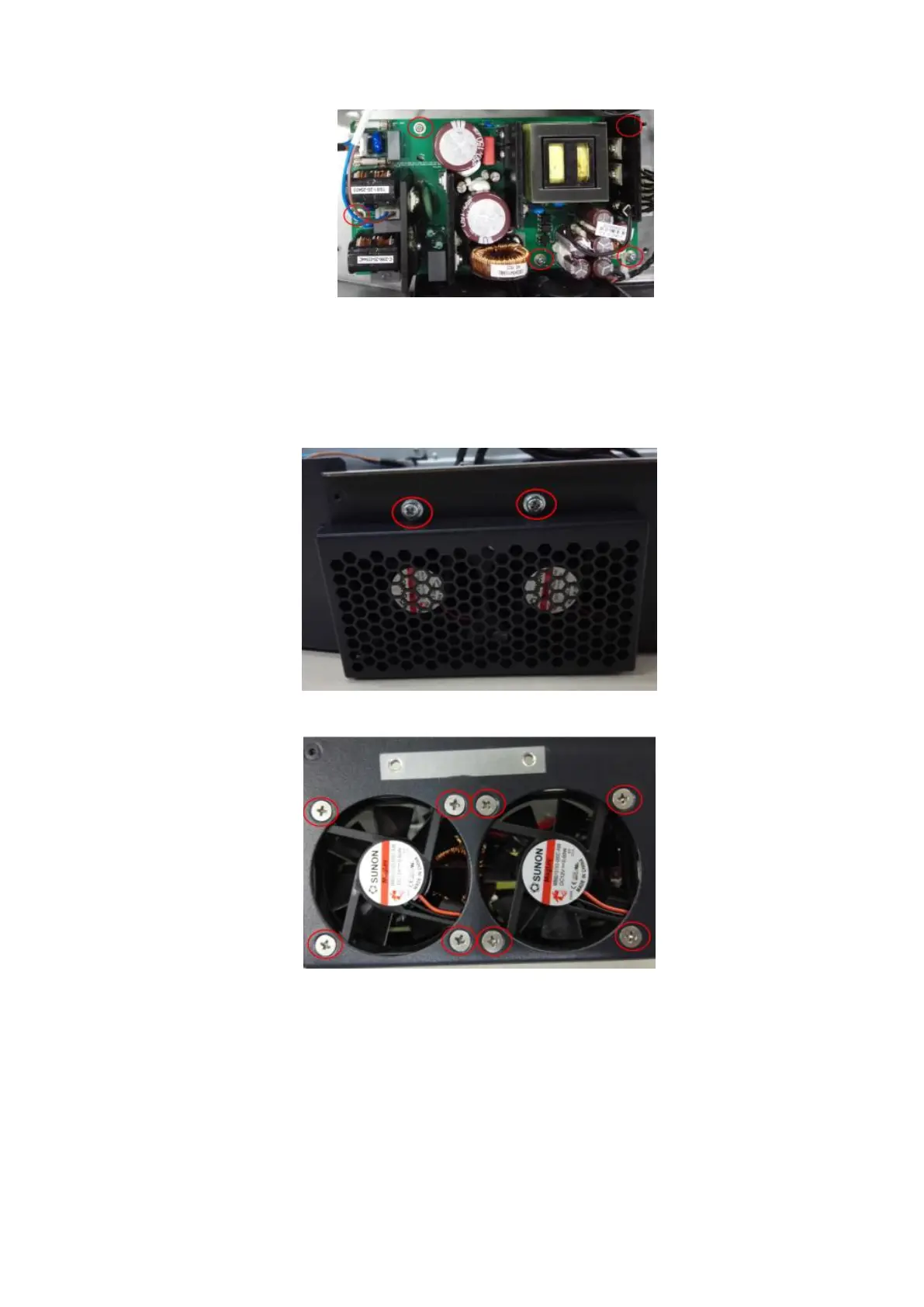

9.3.27
FA
N (
AC-DC Fan)
The disasse
mbly tool:
cross-headed s
crewdriver (
M3, M4),
anti-electrostatic glove
1.
Follow step 1
to step 4
in
Chapter
9.3.24 Po
wer Input
Assembly
.
2.
Unscrew t
wo screws t
o remove the fr
ont cover of
AC-DC module.
3.
Unscrew ei
ght screws;
then unplug t
he cable con
necting fan ass
embly
to control switch b
oard
to remove f
an (two fans
can disass
emble sep
arately
).
171
173
