S
truct
ure and
Assembly/Disas
sembly 9-
45
17.
Pull the clas
p out. Lift
the mecha
nical arm u
pwards t
o remove i
t.
9.3.23
Keyboard Assembl
y
1.
Push and re
lease the
keyboard.
2.
Unscrew fo
ur M4 X
12 screws to r
emove the key
board.
9.3.24
Power Input Assembl
y
The disasse
mbly tool:
cross-headed s
crewdriver (
M3, M4),
anti-electrostatic glove

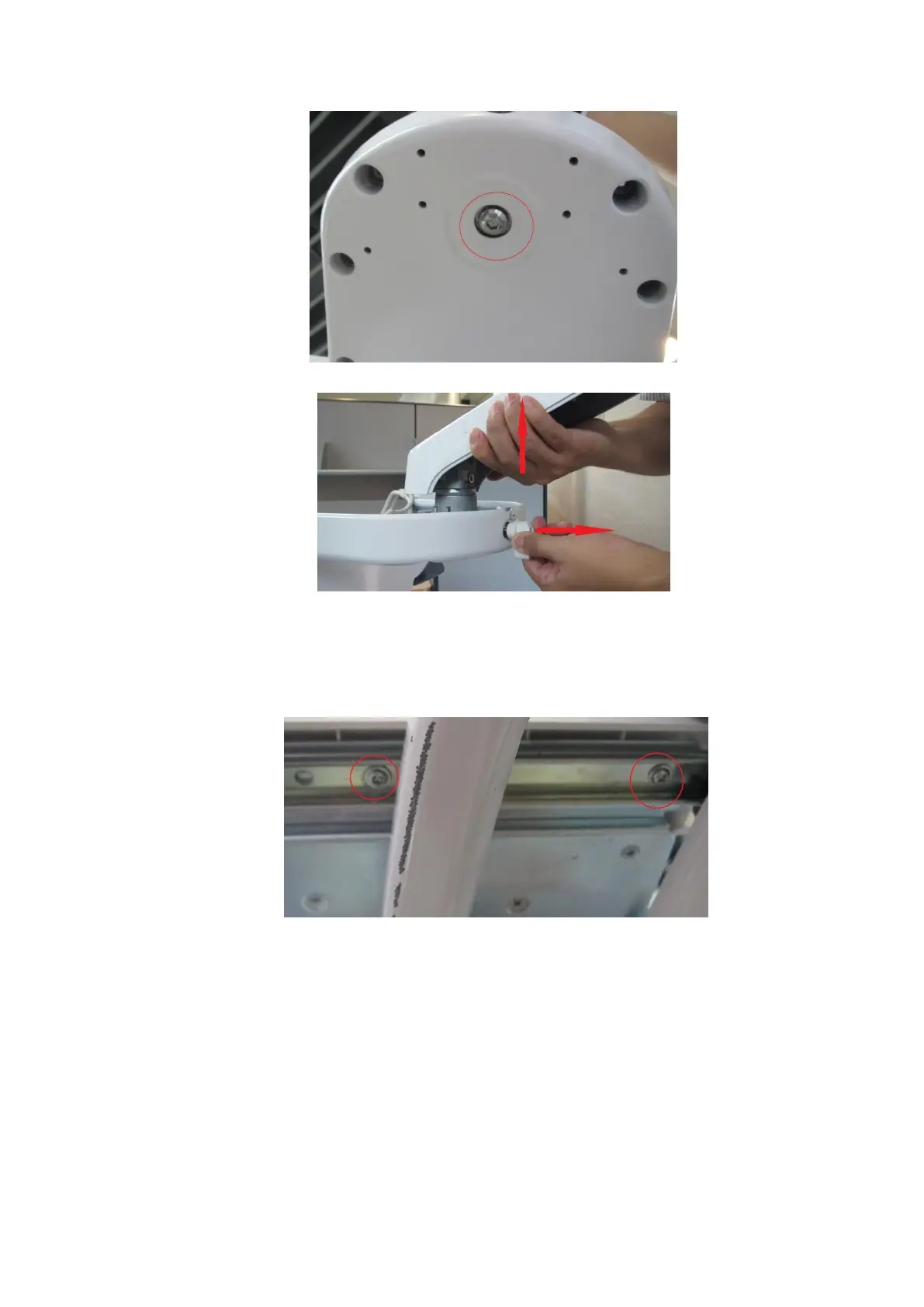

1.
Unscrew
the M4 X
12 screw
as shown in t
he figure below
.
168
170
