9-8
S
tructure
and
Assembly/
Disassemb
ly
4.

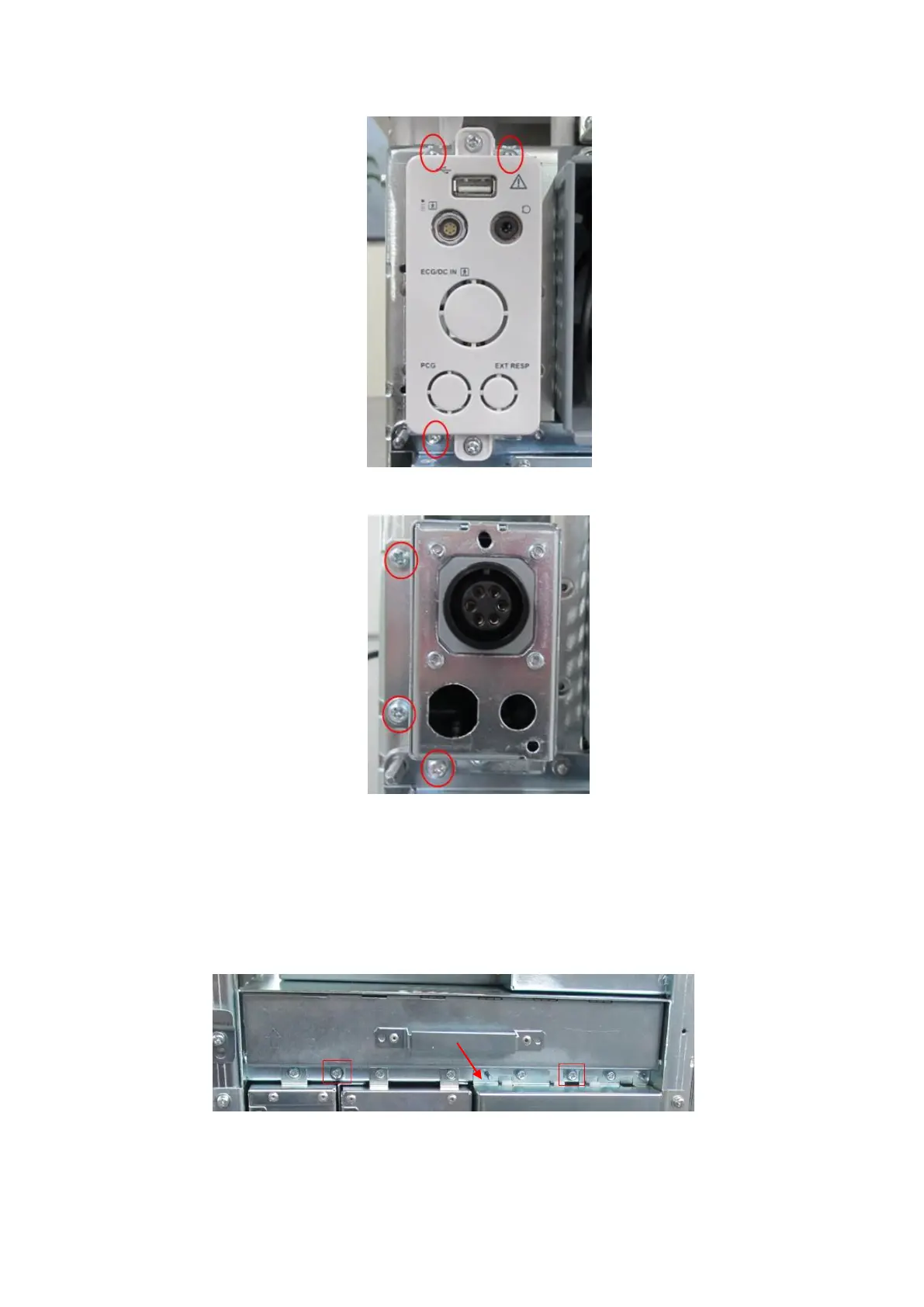

Unscrew
three M4 X
8 screws fixin
g ECG ass
embly
, and pull ECG
assem
bly out.
9.3.4
Outlet Fan
The disasse
mbly tool:
cross-headed s
crewdriver (
M3, M4),
anti-electrostatic glove
1.
Follow st
ep 1 in
Chapter 9.3.
2 to remove le
ft side p
anel.
2.
Unscrew
two
M4
X
8
screws
fi
xing
the
frame
of
the
fan.
Hold
the
metal
handle
to
pull
the
fan
assembly
out.
3.
Unscrew
12 screws
fixing
the fan.
131
133
