4-2 Product Principle
 As the independent sub-module, 4D driving function and physiological signals are
subordinate to the engine board.
 As an option, CW receiving function can be realized through an independent single board
and is subordinate to TRA board signal.
 Back-end unit: more functions are achieved on back-end unit. It basically resembles with PC. It
is equipped with main functions of the main unit, calculation capacity of image post-process,
operator-system interface to human-computer interaction, etc. PC module takes charge of
back-end unit. The elements are shown above.
 Power supply unit: it supplies the power to the front-end unit, back-end unit and peripherals.
Other elements are shown above.
 PHV module is subordinate to DC-DC module.
 DC-DC module includes DC-DC board and battery assembly.
 AC module includes AC-DC, AC interface, etc.
4.2 Ultrasound Front-end Unit
TR
FPGA
CW
Mini Brd
DSP
FPGA
4D&TEE
Board
Pencil Probe
Connector
Engine Brd
TR_A Board
Clock
Data
DDR
ATGC
Probe Various Signals
CPLD
Probe
Signal
Switch
Probe
Connector
A
POUT(64)
Present/ID
Probe Board Probe Management
TX/RX
TX/RX
Power
TX
RX
Front- End
PHV
Sampling
Scan Status
PHV
Sync
PCI-E Bus
Reset
Configuration
Status
JTAG
Physiological Signal
Module
Communication
Reset/Control/Clocks
Probe
Connector
B
Probe
Connector
C
Probe
Connector
D

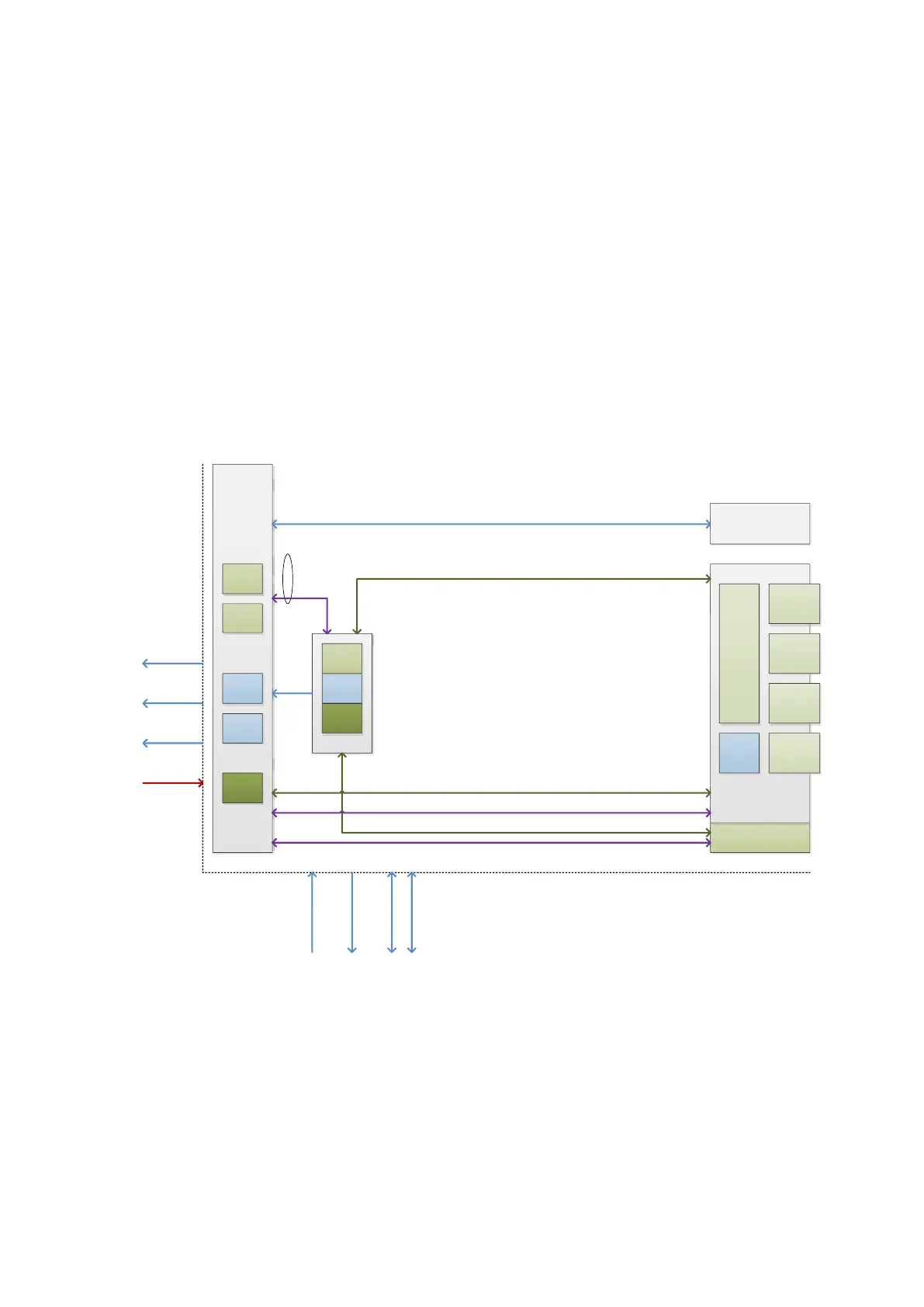

Figure 4-2 Schematic diagram of ultrasound system front-end
Front-end unit mainly consists of:
 Engine board
 TR board
 Probe board
 CW mini board
 4D board
The engine board takes charge of the front-end unit and controls each module of the front-end
control.
