Structure and Assembly/Disassembly 9-31

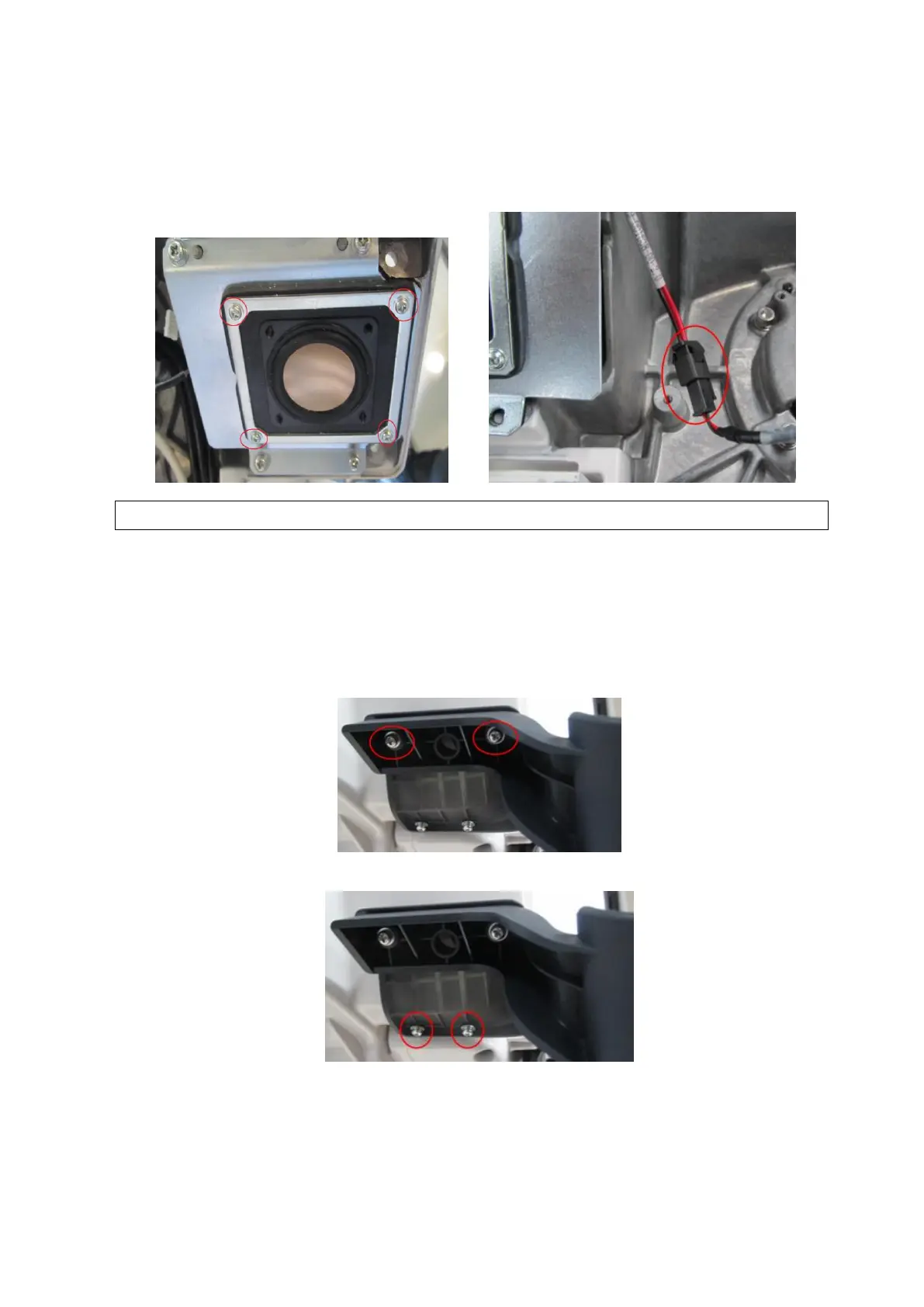

2. Unscrew four M3 X 8 SEMS screws from the speaker to remove it. Disconnect the cables
connecting the speaker to the main unit to remove the speaker assembly. Same procedures to
remove right assembly.
9.3.17 Intra-cavity Probe Holder and Disassembly of
Switching Part
The disassembly tool: cross-headed screwdriver (M3, M4).
1. Unscrew two screws M4 X 12 SEMS screws from intra-cavity probe holder to remove it.
2. Unscrew two screws M4 X 12 SEMS screws from switching part to remove it.
To avoid incorrect installation, please take notice of the position of the speakers.
