C-14 Description of Self Test Items
Test content

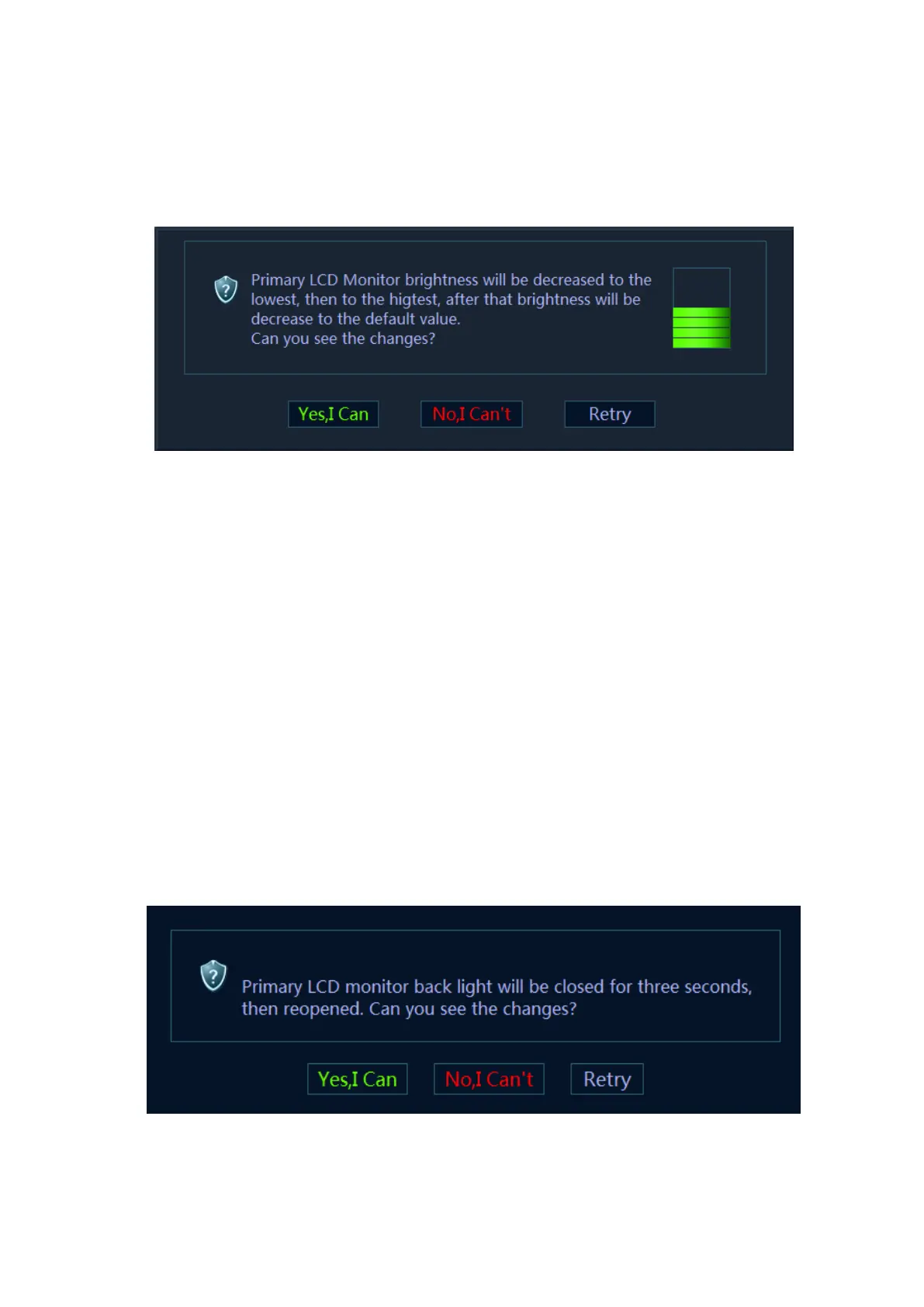

The dialog box appears when performing the test. The program controls the brightness of primary
LCD monitor via 12C interface. The brightness goes down to the lowest, and then goes up to the
highest, then gets back to normal. If backlight changes, click “Yes, I Can”, otherwise click “No, I
Can’t”. If the user clicks “Retry” the system will repeat the procedure mentioned above.
Analysis to test failure
The drive goes wrong if the test result appears Error.
Brightness control of LCD monitor goes wrong if the test result is FAIL.
Suggestion to failure test
Restart the device to perform the self test if the test result appears Error. It is necessary to restore
the device (OS+doppler) if Error re-appears.
It is recommended to replace primary LCD monitor if the test result is FAIL.
C.1.31 Z0903 Primary LCD Monitor Backlight Control Test
Top test item
I2C communication test of primary LCD monitor
Test content
The dialog box appears when performing the test. The program turns the backlight of primary LCD
monitor off for 3 seconds, and then goes back to normal. If backlight changes, click “Yes, I Can”,
otherwise click “No, I Can’t”. If the user clicks “Retry” the system will repeat the procedure
mentioned above.
