C-16 Description of Self Test Items
Analysis to test failure
The drive goes wrong if the test result appears Error.
Brightness control of secondary LCD monitor goes wrong if the test result is FAIL.
Suggestion to failure test
Restart the device to perform the self test if the test result appears Error. It is necessary to restore
the device (OS+doppler) if Error re-appears.
It is recommended to replace secondary LCD monitor if the test result is FAIL.
C.1.34 Z1101 Touch Screen Function Test
Top test item
Communication self test between PC Module and MF FPGA
Test content

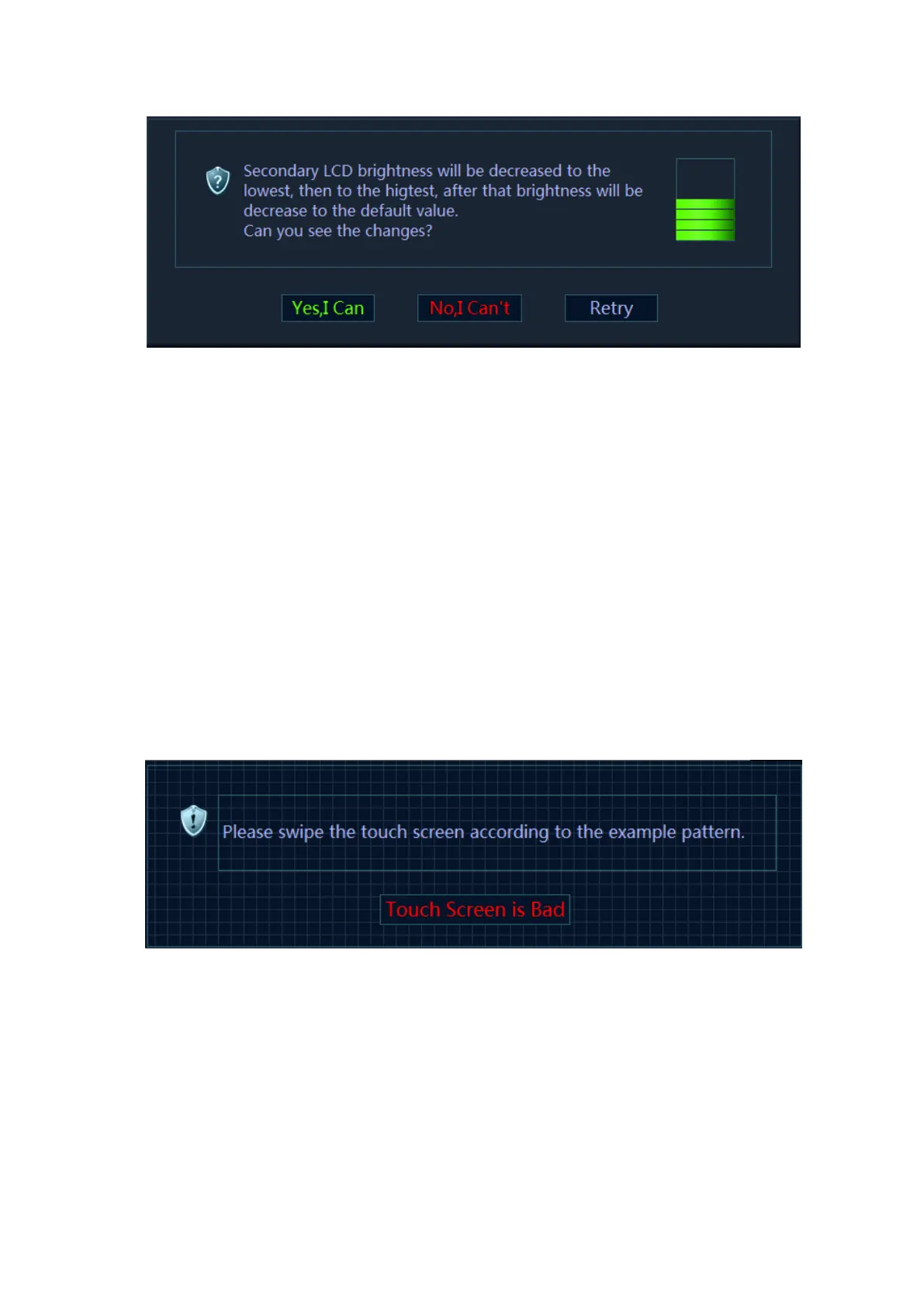

The following dialog box appears on primary LCD monitor when performing the test. It requires
the manual operation to flick according to the example pattern.
