ECG/RESP Monitoring
11-36

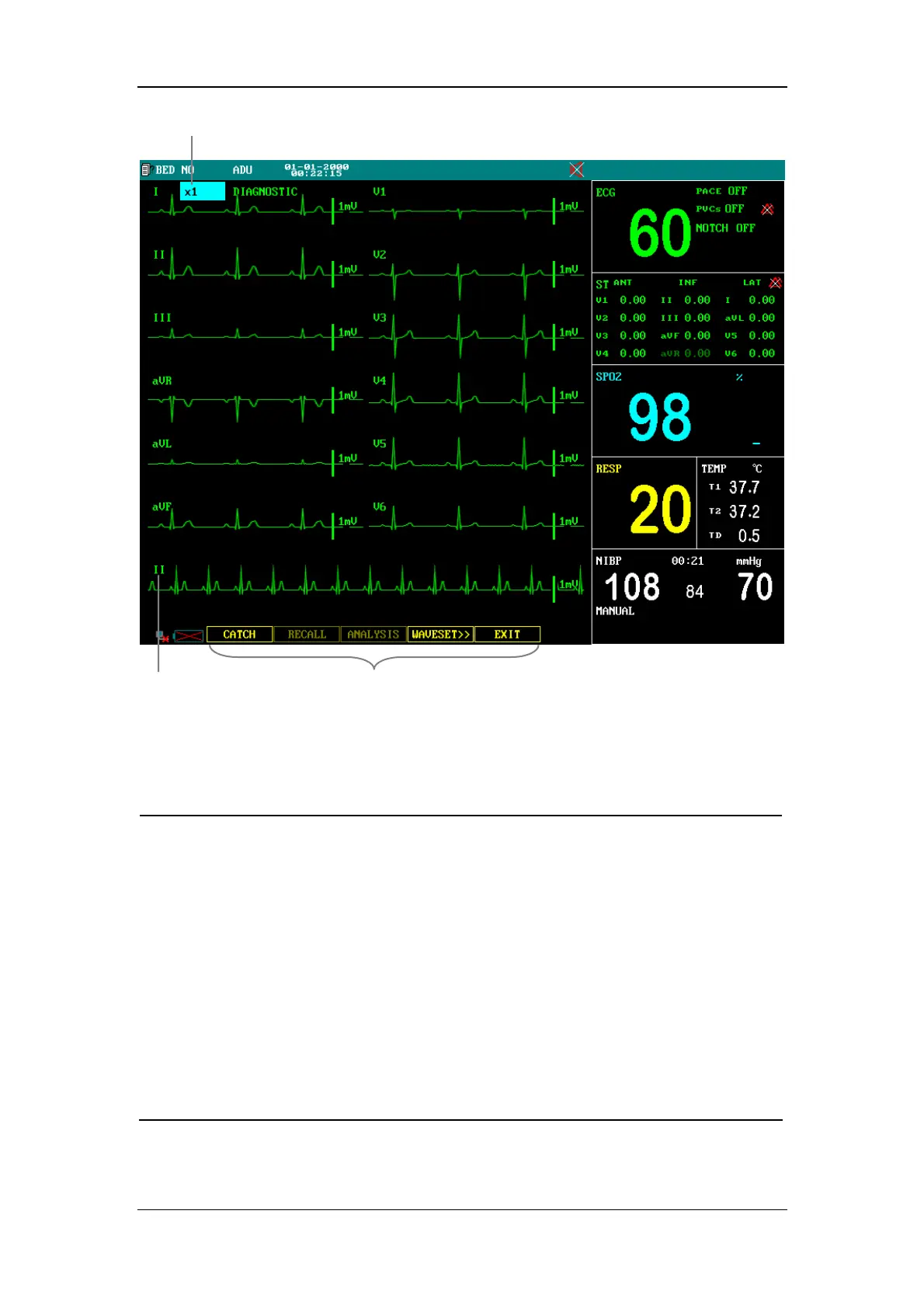

Figure 11-24 ECG 12-lead analysis screen
NOTE
z In the 12-lead analysis mode, the monitor cannot be set to the standby
mode and the LEAD TYPE option in the ECG SETUP menu is disabled.
z In the 12-lead analysis mode, the system will automatically disable the
DEFIB. SYNC. function.
z On the 12-lead analysis screen, FILTER is DIAGNOSTIC, which cannot be
set by the user.
z In the 12-lead analysis mode, the setting of HR CHANNEL is the same in
the normal monitoring screen. But here, the CH1 of HR CHANNEL
setting corresponds to II lead immovably, and the CH2 corresponds to I
lead immovably.
In the waveform area, there are also 7 labels: waveform gain label, rhythm lead label
and 5 12-lead analysis labels.
Waveform
ain label
Rh
thm lead label
12-lead anal
sis labels
