5-120 Image Optimization
No. Device Name Port Description

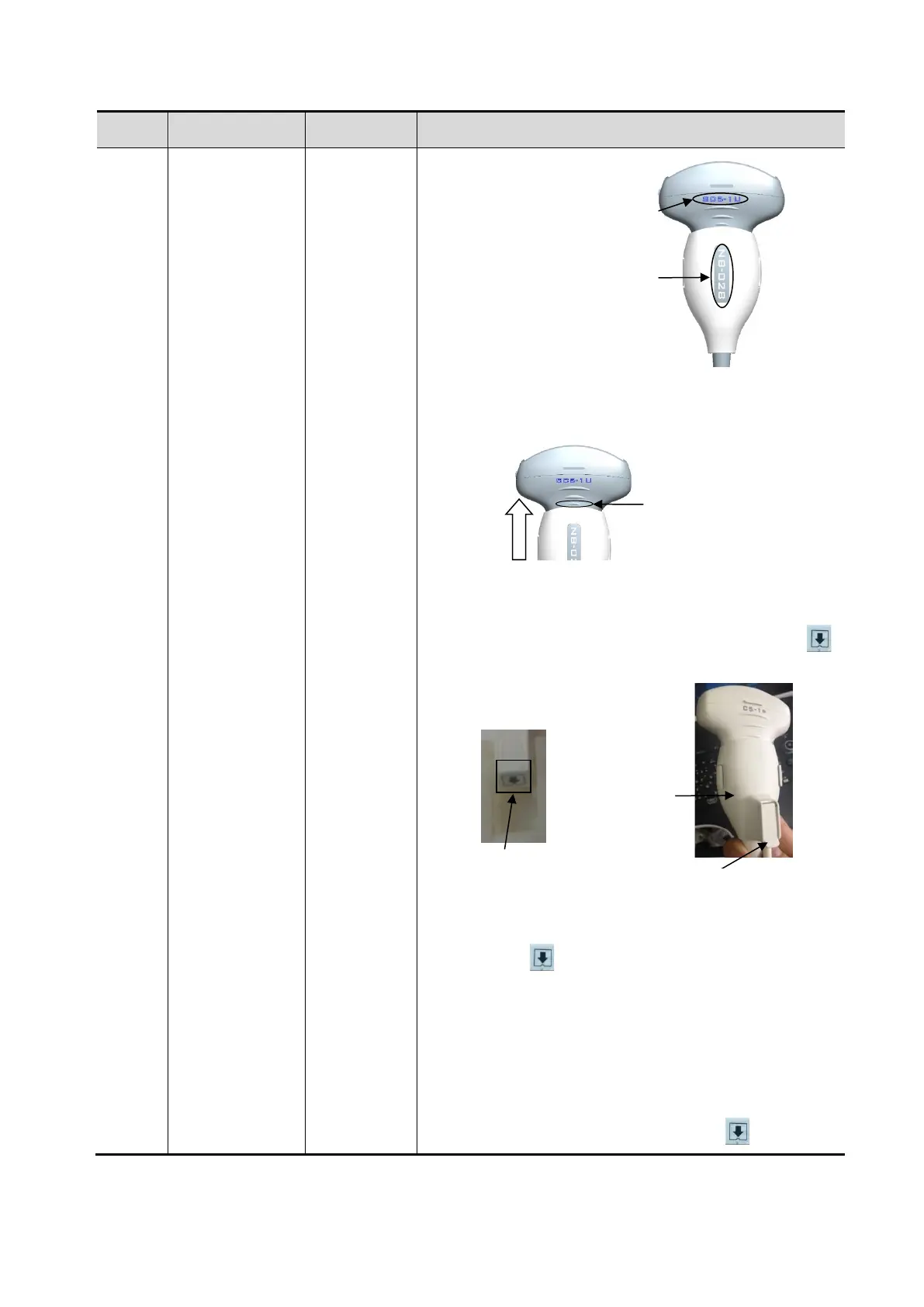

Push the navigation support fastened following
the arrow’s guide.
3. Positioning (probe) sensor: fix the positioning
(probe) sensor which is already plugged in
positioning (probe) sensor port to the cavity of the
positioning (probe) navigation support following
guide.
Note: if failed to plug the positioning (probe) sensor
following guide, it may lead to non-correlation
of spatial positioning.
4. Positioning (probe) sensor sterile sheath: wear the
probe sterile sheath after probe sensor and positioning
(probe) navigation support are installed.
5. Motion (abdomen) sensor: fix the motion (abdomen)
sensor which is already plugged in motion
(abdomen) sensor port to the cavity of the motion
(abdomen) sensor support following guide.
Positioning (probe) sensor
Positioning
(probe)
navigation
support
Face downward
Fastened here
Silk print on the
support
Silk print on the
probe
To Next Page
